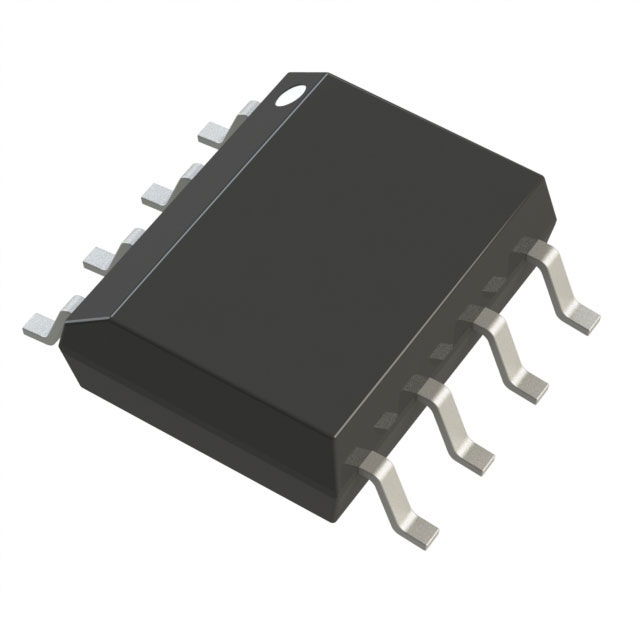

High-precision amplifier AD823ARZ helps embedded measurement systems

Accurate tools are essential for working with measurement systems, and the AD823ARZ operational amplifier excels in this area. Designed for signal data acquisition and precision measurement, the AD823ARZ offers high precision with a low input offset voltage of 0.5 mV, ensuring reliable and accurate signal data collection. Its high common-mode rejection ratio of 90 dB maintains signal clarity, while its energy-efficient design uses only 1.6 mA of current. These features make the AD823ARZ an ideal choice for applications requiring high precision, such as medical devices and industrial sensors.

Key Takeaways

• The AD823ARZ amplifier is very accurate with a small input error of 0.5 mV. This helps collect correct signal data for medical and industrial uses.

• Its high input resistance stops signals from getting messed up. This makes it great for picking up weak signals from sensors without losing quality.

• The amplifier works well using only 1.6 mA of power. This saves battery life in portable devices and lowers energy costs.

• It works in temperatures from -40°C to +85°C. This makes it dependable in tough weather and industrial places.

• The AD823ARZ makes circuit design simple. It helps build small, efficient systems that still work really well.

Technical Features of the AD823ARZ Operational Amplifier

Low offset voltage for high precision

Precision is very important in measurement systems. The AD823ARZ amplifier works well because its offset voltage is only 0.5 mV. This means small signals are amplified clearly without errors. It keeps signal data accurate, which is useful for medical tools or industrial sensors. By reducing offset mistakes, the AD823ARZ ensures dependable results for precise measurements.

High input impedance for accurate signal acquisition

The AD823ARZ has high input impedance, which helps keep signals accurate. It stops the amplifier from affecting the signal source, keeping the signal's quality intact. This is helpful for weak signals from sensors or transducers. With this amplifier, you can capture signals without losing quality. It’s great for tasks like environmental monitoring or portable measuring devices.

Low power consumption for energy-efficient systems

Saving energy is important for modern devices, especially portable ones. The AD823ARZ uses very little power, only 1.6 mA of current. This helps batteries last longer and lowers energy costs. Below is a table showing its energy-saving feature:

The AD823ARZ lets you design systems that save energy but still work well. Whether for medical tools or industrial machines, it helps balance power use and precision.

Works Well in Hot and Cold Conditions

The AD823ARZ amplifier can handle temperatures from -40°C to +85°C. This means it works well even in tough environments. Whether it's for factory machines, outdoor monitors, or portable medical tools, this amplifier stays accurate in extreme heat or cold.

Why is this important?

1. Stays Reliable in Tough Weather
   Many electronics stop working in bad weather. But the AD823ARZ stays stable and precise, even in freezing or very hot conditions. This makes it perfect for things like weather monitoring, where temperatures can change a lot.

2. Useful for Many Devices
   You can use the AD823ARZ in different places, such as:

   • Medical Tools: Patient monitors need to work in changing temperatures. This amplifier keeps readings correct.

   • Factory Machines: Equipment in factories often gets hot. The AD823ARZ handles heat without problems.

   • Outdoor Devices: Weather stations and sensors need to work in cold or heat. This amplifier is great for those uses.

Tip: If you're building outdoor or factory systems, pick parts like the AD823ARZ. It works in all temperatures and lasts longer.

Key Details

The AD823ARZ's ability to handle temperature changes makes it reliable. You won’t have to worry about it failing in tough conditions. It’s a smart choice for engineers creating important systems.

Uses in Signal Collection and Accurate Measurements

Medical tools like ECG machines and patient monitors

Medical tools need to be very accurate for correct readings. The AD823ARZ amplifier is important in devices like ECGs and monitors. Its low offset voltage helps capture tiny body signals correctly. This is crucial for spotting small changes in heart activity or other body functions.

The AD823ARZ works well in medical settings. It keeps signals clear, even in noisy places, making it great for healthcare use. Whether for portable ECGs or bedside monitors, this amplifier ensures accurate signal collection and precise measurements.

Industrial sensor signal processing

Factories and industrial areas can be tough on equipment. Sensors here must give exact data for smooth work. The AD823ARZ amplifier is great for handling signals from industrial sensors. Its high input impedance stops signal errors, ensuring accurate data from pressure, temperature, or flow sensors.

This amplifier makes circuit design easier while staying precise. It works well in hot or cold places, like factories or outdoor setups. The AD823ARZ helps process signals efficiently, which is key for factory automation and monitoring systems.

Portable and battery-powered measuring tools

Portable tools need parts that save energy but work well. The AD823ARZ amplifier uses little power and has high bandwidth. It processes signals accurately while saving battery life, making it perfect for handheld measuring devices.

The AD823ARZ is great for portable systems needing accuracy. Its small size and energy-saving design suit environmental monitors, handheld medical tools, or portable testers. This amplifier ensures reliable results without wasting power.

Environmental monitoring and data logging systems

Environmental monitoring systems check temperature, humidity, air quality, and more. They need accurate data to track changes. The AD823ARZ amplifier helps these systems give reliable results. Its precision and low power use make it great for portable and fixed devices.

Why the AD823ARZ is Perfect for Environmental Monitoring

1. Accurate Signal Processing
   Sensors in environmental systems often create weak signals. These signals need amplifying without errors. The AD823ARZ has low offset voltage and high input impedance. It captures tiny signals correctly. This is important for air quality checks, where small changes matter.

2. Energy Efficiency for Long-Term Use
   Remote systems often run on batteries. The AD823ARZ uses only 1.6 mA of current. This saves battery life and lowers maintenance needs. You can place systems in faraway areas without worrying about power replacements.

3. Durability in Harsh Conditions
   Environmental monitoring happens in tough weather. The AD823ARZ works well in temperatures from -40°C to +85°C. Whether in icy or hot places, it stays reliable and accurate.

Tip: Use parts like the AD823ARZ for outdoor systems. It handles temperature changes and stays precise.

Applications in Data Logging Systems

Data logging systems save environmental data over time. They need amplifiers that work without adding noise. The AD823ARZ has a high common-mode rejection ratio (CMRR) of 90 dB. This reduces interference and keeps data clean.

Real-World Examples

• Weather Stations: It boosts signals from temperature and humidity sensors for better forecasts.

• Air Quality Monitors: It processes gas sensor signals to detect pollutants like CO2 and NO2.

• Soil Monitoring Systems: Farmers use it to check soil moisture and nutrients for better crops.

The AD823ARZ amplifier makes monitoring systems precise, energy-saving, and dependable. It works well even in hard conditions.

Note: Pair the AD823ARZ with low-power microcontrollers and sensors for the best results in long-term monitoring systems.

Benefits of the AD823ARZ in Embedded Systems

Better signal quality and stability

Embedded systems need clear and steady signals to work well. The AD823ARZ amplifier helps by keeping signals accurate during data collection. Its low offset voltage stops errors, so signals stay clean and correct. This is very helpful for medical tools and environmental monitors, where small mistakes can cause wrong results.

The amplifier also blocks outside noise with its high CMRR. This keeps signals stable and reliable. Whether you're building portable gadgets or factory machines, the AD823ARZ ensures smooth signal processing every time.

Easier circuit design for small devices

Making circuits simple is important for small and efficient systems. The AD823ARZ amplifier makes this easier. For example, it works well with the ACS730 sensor, which measures AC and DC currents. The AD823ARZ creates a 2.5 V reference and supports the sensor’s output, making the circuit less complicated.

It also works with circuits using two power supplies. This lets you design systems that are small but still powerful. Whether for portable tools or factory setups, the AD823ARZ makes designing easier while keeping measurements precise.

Affordable choice for high-quality systems

Good systems need to balance cost and performance. The AD823ARZ amplifier is affordable and works great. Its energy-saving design uses less power, cutting costs for battery devices.

It also works well in hot or cold places, lasting longer and needing less fixing. You can trust it for medical tools, factory sensors, and environmental monitors. It’s precise, reliable, and a smart choice for engineers who want quality without spending too much.

Reliable performance in low-voltage systems

Embedded systems often work with limited power supply levels. They need parts that stay reliable even when voltage drops. The AD823ARZ amplifier works well in low-voltage setups. It’s a great choice for engineers making energy-saving devices.

Why is low-voltage performance important?

Low-voltage systems are common in portable tools and battery-powered devices. These systems need amplifiers that stay accurate without using too much power. The AD823ARZ works with voltages as low as ±1.5 V. This keeps it reliable in low-power environments.

Tip: Use the AD823ARZ for devices like wearable monitors or wireless sensors.

Benefits of the AD823ARZ in low-voltage systems:

• Works well with low power: The AD823ARZ keeps signals clear even with little power. This helps your system stay accurate without interruptions.

• Saves energy: It uses only 1.6 mA, which helps batteries last longer in portable devices.

• Fits with other low-power parts: The AD823ARZ works easily with small circuits, making design simpler.

The AD823ARZ amplifier balances precision and energy savings. It’s perfect for modern embedded systems. Whether for medical tools, sensors, or portable gadgets, this amplifier keeps devices efficient and dependable.

Note: Picking parts like the AD823ARZ helps you build systems that save power and perform well.

Why the AD823ARZ is Ideal for Precision Measurement Systems

How it compares to other amplifiers

Choosing the right amplifier means finding one that is precise, efficient, and reliable. The AD823ARZ is better than many others because of its special features. Some amplifiers have low offset voltage, but the AD823ARZ has just 0.5 mV. This makes signals more accurate. Its high input impedance also keeps weak signals clear, unlike many other amplifiers.

Another great feature is its low power use. Some amplifiers use too much energy, but the AD823ARZ only needs 1.6 mA. This makes it perfect for portable devices. It also works in extreme temperatures, from -40°C to +85°C, while others may fail. These features make the AD823ARZ a top pick for precise measurements and signal collection.

Real-world success stories

The AD823ARZ amplifier works well in many industries. In medical tools like ECG machines, it captures tiny body signals with great accuracy. Factories also use it to process data from sensors that measure pressure or temperature.

Environmental monitors benefit from its ability to save energy while amplifying weak signals. For example, air quality monitors use it to detect small gas changes. It stays reliable in tough conditions, whether in factories or outdoor weather stations. These examples show why engineers trust the AD823ARZ for important tasks.

Easy to find through trusted distributors like deir-ic.com

Getting good parts for your projects can be hard. Luckily, the AD823ARZ is easy to buy from trusted sellers like deir-ic.com. Buying from these sources ensures you get real products with full support from the maker.

Distributors like deir-ic.com also offer helpful guides and customer service. They make it easier to use the AD823ARZ in your designs. Whether you're making medical tools, factory systems, or environmental monitors, you can rely on them for quality parts and help.

Tip: Always buy from trusted sellers to avoid fake parts and ensure your system works well.

The AD823ARZ amplifier changes how precision systems are designed. It is very accurate and works efficiently, making it dependable for collecting signals in medical, industrial, and environmental uses. This amplifier helps make designs simpler while keeping them precise. It also saves money and energy, letting you build systems that work great even in tough conditions.

Tip: Use the AD823ARZ to improve your designs and get better results in precision tasks.

FAQ

Why is the AD823ARZ good for portable devices?

The AD823ARZ uses only 1.6 mA of current. This helps batteries last longer. Its small size and low power use make it great for portable tools. Devices like handheld medical tools or environmental monitors work well with it.

Can the AD823ARZ work in extreme temperatures?

Yes, it works between -40°C and +85°C. This wide range keeps it reliable in tough conditions. It’s perfect for outdoor monitors or factory systems. It stays accurate in freezing cold or hot weather.

How does the AD823ARZ make signals better?

The AD823ARZ has a low offset voltage of 0.5 mV. It also has a high common-mode rejection ratio (CMRR) of 90 dB. These features reduce errors and noise. It keeps signals clear and accurate for important tasks.

Is the AD823ARZ simple to use in circuits?

Yes, it’s easy to add to circuits. It works with single or dual power supplies. It also pairs well with sensors and other parts. This makes building small and efficient systems easier.

Where can I buy the AD823ARZ?

You can get the AD823ARZ from trusted sellers like deir-ic.com. Buying from reliable sources ensures you get real products. You’ll also get support from the manufacturer for your projects.

Tip: Look for datasheets and guides from the seller. These help you use the amplifier better in your designs.
