The Role of AD8310ARMZ in Modern High-Frequency Communication Systems

ymn@deirchip.com

·May 13, 2025

·10 min read

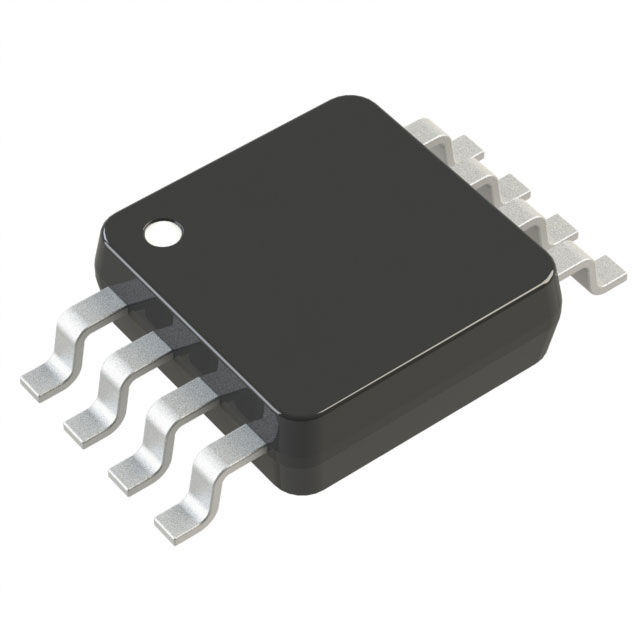

The Role of AD8310ARMZ in Modern High-Frequency Communication Systems — Image Source: deir-ic

The wide dynamic signal wireless high frequency communication equipment logarithmic amplifier AD8310ARMZ is crucial in today's wireless communication devices. It effectively manages wide signal ranges with exceptional accuracy, making it indispensable. As a logarithmic amplifier, the AD8310ARMZ converts high-frequency signals into more manageable outputs. It operates with signals up to 95 dB and frequencies ranging from 1 MHz to 8 GHz. Its slope of 25 mV/dB enhances its ability to process signals accurately. With low noise at 100 mV and a power consumption of only 8 mA, the AD8310ARMZ performs efficiently while conserving energy.

Key Takeaways

The AD8310ARMZ is a special amplifier that measures strong signals. It is very useful for today's wireless communication systems.
It works well with signals up to 440 MHz and handles a wide range of signal strengths, making it reliable for many uses.
Its small size and low energy use (only 8 mA) make it great for portable gadgets, helping save battery power.
The AD8310ARMZ makes it easier to measure signal strength, which is important for things like checking signal levels in wireless networks.
Engineers can add the AD8310ARMZ to their projects easily by following simple setup steps and tips to reduce noise.

Guide to the AD8310ARMZ Logarithmic Amplifier

Purpose and Functionality

The AD8310ARMZ amplifier is important for handling signals. It measures signal strength over a wide range, making it great for high-frequency systems. Unlike regular amplifiers that boost signals evenly, this one compresses signals logarithmically. This helps manage signals with big amplitude changes easily.

The AD8310ARMZ datasheet explains how it works in detail. It shows how its logarithmic response is different from linear amplification. The datasheet also includes example circuits to help you use it in your projects. This makes it a flexible tool for engineers working on wireless systems.

Key Features and Benefits

The AD8310ARMZ has many features that make it special. It works with signals from DC to 440 MHz, so it fits many communication needs. Its logarithmic response gives accurate signal strength readings, which are useful for tasks like RSSI.

Here’s a simple comparison of its benefits:

Feature	AD8310ARMZ Advantages
Frequency Range	Handles signals from DC to 440 MHz
Logarithmic Response	Gives precise signal strength readings
Package Size	Small 8-lead MSOP package
Response Time	Quick for real-time signal checks
Cost	Affordable for RF signal strength tasks

Its small size makes it easy to add to designs. The fast response time helps monitor signals instantly. But, you might need extra filters to reduce noise and adjust for temperature changes.

Choosing the AD8310ARMZ gives you a dependable and low-cost way to process high-frequency signals. Its features make it a smart pick for today’s communication systems.

Technical Details of the AD8310

Pin Setup and Design

Knowing the AD8310's pin setup is important for using it. It comes in a small 8-lead MSOP package, which is easy to handle. Each pin has a job to make the amplifier work well. Here’s a quick look at the main pins:

Pin No.	Name	Job Description
1	INLO	One of two inputs. Biased near half of VPOS.
2	COMM	Common pin. Usually connected to ground.
3	OFLT	Offset filter pin. Normally around 1.75 V.

Other pins include the second input (INHI), output (VOUT), and power pins (VPOS and GND). This simple layout makes it easier to design circuits and focus on improving them.

Voltage and Power Details

The AD8310 works with different voltage levels, so it fits many uses. Its supply voltage ranges from 2.7 V to 5.5 V, making it good for low or standard power systems. It uses only 8 mA of current, saving energy.

It also has low power use, just 200 mW, which keeps circuits cooler. The output voltage ranges from 0.5 V to 2.5 V, giving room for signal changes. These features make it a great choice for systems needing energy efficiency.

Frequency and Signal Range

The AD8310 handles a wide range of frequencies and signals, which is key for high-frequency systems. It supports frequencies up to 440 MHz and has a 3 dB bandwidth of 900 MHz. This makes it useful for many RF tasks.

Its signal range is also wide, with an input range of 95 dB. This lets it handle signals with big changes without messing up. The 25 mV/dB slope measures signal strength accurately, perfect for tasks like RSSI.

With its wide frequency and signal range, the AD8310 works well in tough conditions. Whether for wireless systems or other RF uses, it gives the accuracy and dependability you need.

Applications in Wireless High-Frequency Communication Equipment

Receiver Signal Strength Indication (RSSI)

In wireless systems, measuring signal strength is very important. The AD8310 helps by converting strong signals into easier outputs. This makes checking signal strength simple and accurate.

RSSI is used to make wireless networks work better. It helps adjust antennas, improve coverage, and reduce signal problems. The AD8310’s wide range ensures it works well even with changing signals. Its special design makes measuring big signal changes easier.

For example, in cell networks, RSSI checks connection quality. The AD8310 handles high-frequency signals, making it perfect for this job. Its small size also fits well in portable devices.

Signal Processing in Communication Systems

Signal processing is key in modern communication. It filters, boosts, and studies signals for many uses. The AD8310 is great at this because it’s accurate and works with many frequencies.

RF signals change quickly, so you need reliable parts. The AD8310’s design keeps it steady across a wide range. It works up to 440 MHz, making it good for satellites and radar.

The AD8310 also monitors signals in real time. Its quick response helps detect and study signals fast. This is useful for systems needing quick fixes, like smart antennas.

Other High-Frequency Applications

The AD8310 is useful for more than just RSSI and signal work. It’s great for RF power checks, automatic gain control (AGC), and phase matching.

For RF power, the AD8310 measures transmitter output. Its design gives accurate readings over a wide range. This helps keep RF systems running well.

In AGC circuits, it keeps signal levels steady by adjusting gain. This is helpful when signals change a lot. Its small size and low power use make it ideal for portable designs.

The AD8310 also compares signal phases, useful in frequency and modulation tasks. Its ability to handle high frequencies ensures it works well.

The AD8310 is a flexible tool for engineers. Whether for RSSI, signal work, or other RF tasks, it provides the accuracy and efficiency needed.

Comparison of AD8310ARMZ with Similar Components

AD8310ARMZ vs TL441

The AD8310ARMZ and TL441 are different in many ways. The TL441 works well at lower frequencies but isn’t great for high-frequency systems. The AD8310ARMZ, however, handles up to 440 MHz, making it better for modern wireless devices.

The AD8310ARMZ also measures signals up to 95 dB, which is a wider range than the TL441 can handle. It uses less power, making it perfect for portable gadgets. Its small 8-lead MSOP package makes it easy to fit into designs.

AD8310ARMZ vs MAX4206

The MAX4206 is another amplifier often compared to the AD8310ARMZ. Both are good at signal processing, but the AD8310ARMZ has a higher frequency range and faster response. The MAX4206 works up to 300 MHz, while the AD8310ARMZ goes up to 440 MHz.

The AD8310ARMZ is also more accurate at measuring signals because of its 25 mV/dB slope. This makes it better for tasks like RSSI. It uses less power and is smaller, which is great for energy-saving and compact designs.

Advantages of AD8310ARMZ

The AD8310ARMZ has many benefits over other amplifiers. Its wide frequency and dynamic ranges make it useful for many high-frequency tasks. It saves energy with low power use and fits easily into modern systems because of its small size.

Its logarithmic response gives accurate signal readings, which is important for RSSI and AGC. It also handles quick signal changes well, making it reliable for real-time monitoring. These features make the AD8310ARMZ a top choice for engineers working on advanced communication projects.

Practical Use of the AD8310ARMZ

Example Circuit Setup

Using the AD8310ARMZ in a circuit is simple. It often works as a logarithmic amplifier to measure RF signal strength. Connect the input pins (INHI and INLO) to the RF signal source. The output pin (VOUT) gives a voltage based on the input signal's size.

Here’s how to set up the circuit:

1. Attach the RF signal source to INHI and INLO.
2. Place a capacitor on the OFLT pin to reduce noise.
3. Power the amplifier with 2.7 V to 5.5 V.
4. Check the output voltage at VOUT for signal strength.

This setup is useful for tasks like RSSI or RF power checks. You can change parts of the circuit to fit your needs.

Adding to Communication Systems

The AD8310ARMZ works well in modern communication systems. It handles wide signal ranges and high frequencies, making it great for RF microwave devices. You can use it in things like wireless stations, radar, and satellites.

For example, in a wireless station, it watches RF signals to keep the system working well. Its quick response helps make real-time changes, improving reliability. Its small size and low power use make it perfect for portable devices.

Design Tips and Best Practices

To get the best results, follow good design rules when using the AD8310ARMZ. Reduce noise by grounding properly and adding bypass capacitors near power pins.

Temperature changes can affect accuracy. Add circuits to adjust for temperature shifts. Keep the input signal within the allowed range to avoid problems.

Always check the AD8310ARMZ datasheet for detailed instructions. Test your design in real-world conditions to find and fix issues early. These steps will help you build strong and efficient RF systems.

The AD8310ARMZ is important in high-frequency communication systems today. It measures signal strength accurately because of its wide bandwidth and dynamic range. These qualities make it useful for tasks needing precise signal control. Its low power use and quick response make it reliable and efficient in tough conditions.

This amplifier changes RF signals into a DC output scaled in decibels. This makes measuring signals easier and improves system performance. Adding the AD8310ARMZ to your designs helps advance communication technology and works better than similar parts.

FAQ

1. What makes the AD8310ARMZ different from other amplifiers?

The AD8310ARMZ is special because it uses a logarithmic response. It handles high frequencies up to 440 MHz and has a wide dynamic range. Its small size and low energy use make it great for modern systems.

2. Can you use the AD8310ARMZ in portable devices?

Yes, you can use it in portable gadgets. Its tiny 8-lead MSOP package and low energy use (8 mA) make it perfect for battery-powered devices. It works well without wasting power.

3. How does the AD8310ARMZ help in RSSI applications?

The AD8310ARMZ changes RF signals into a DC output measured in decibels. This helps you check signal strength easily, even when signals vary a lot. It works reliably in wireless systems.

4. What voltage range does the AD8310ARMZ support?

The AD8310ARMZ works with voltages from 2.7 V to 5.5 V. This makes it useful for both low-power and regular systems.

5. Do you need additional components when using the AD8310ARMZ?

Yes, you may need extra parts like bypass capacitors to lower noise. Filters can help with temperature changes. Good grounding and careful design improve how it works.

💡 Tip: Check the AD8310ARMZ datasheet for helpful design tips and instructions.
