Never Settle: ADR4525BRZ Alternatives for Precision Systems

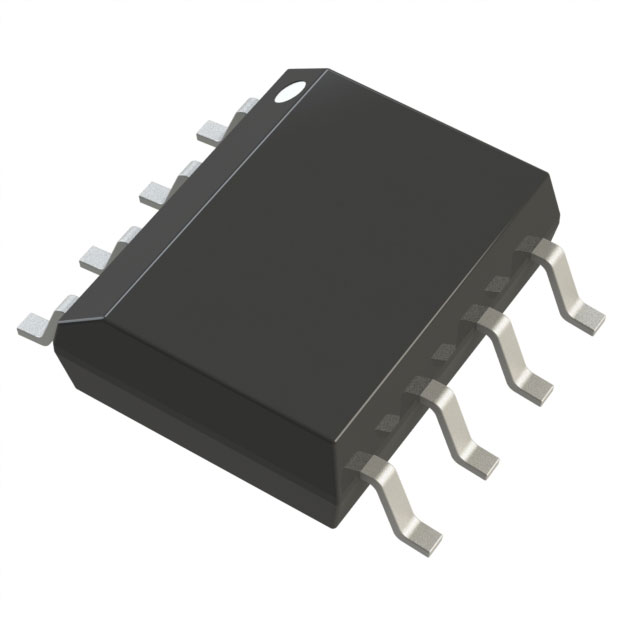

When creating precise systems, it's essential to use components that perform reliably. The ADR4525BRZ High Precision Voltage Reference Data Acquisition Bridge Sensor System is a popular choice, but alternatives like ADR4550BRZ, REF5025AIDR, and AD7606BSTZ-6RL may offer even better performance. These components are excellent for applications involving data collection and sensor systems. If your project demands high accuracy, considering the ADR4525BRZ and other options can help you achieve optimal results.
Key Takeaways
Look for other choices instead of ADR4525BRZ for better results.
Pay attention to accuracy, power use, and noise when picking a voltage reference.
Check out options like ADR4550BRZ, REF5025AIDR, and AD7606BSTZ-6RL. These might work better for your project.
Always read datasheets to make sure the part fits your system and environment.
Test new parts carefully to see if they work well in real situations.
Why Look at Other Options?
ADR4525BRZ's Drawbacks
The ADR4525BRZ is a dependable choice for precise systems. But, it has some downsides that might make you consider other options. One issue is its fixed output voltage. This feature keeps it stable but doesn’t work for systems needing adjustable voltage. Also, it uses more power, which isn’t ideal for energy-saving designs, like battery-powered devices.
Another problem is finding the ADR4525BRZ in stock. Supply chain issues can make it hard to get. This could delay your project or mess up your schedule. Checking out other options gives you backups that still meet your needs.
What to Look for in Voltage References
When picking a voltage reference, focus on a few key things. Accuracy is very important. A precise voltage reference keeps your system working well, even in tough conditions. For example, industries like cars, factories, and healthcare need very accurate and reliable parts.
Power use is another big factor. Low-power voltage references are great for saving energy. They also help your system last longer and stay cooler. New trends show people want low-power, accurate parts more than ever. These parts make systems more efficient and easier to design.
You should also think about how much the voltage reference combines into one part. Highly combined parts make designing easier and cut down on extra pieces. This is super helpful in things like electric cars and medical tools, where space and efficiency matter a lot.
By thinking about these points, you can pick a voltage reference that fits your project and works its best.
Top Alternatives to ADR4525BRZ
Looking for replacements for the ADR4525BRZ? You need parts that are accurate, dependable, and efficient. Here are three great options for your precision systems.
Option 1: ADR4550BRZ
The ADR4550BRZ is a top-notch voltage reference. It gives a steady 5.0V output, perfect for systems needing stable voltage. It works well in tough conditions because of its low noise and strong thermal stability.
Key Features:
Output Voltage: 5.0V
Temperature Coefficient: 2 ppm/°C
Noise: 1.25 µV p-p (0.1 Hz to 10 Hz)
This part is great for industrial tools, medical devices, and precise instruments. It uses little power, making it good for battery-powered systems. If you need a solid replacement for the ADR4525BRZ, the ADR4550BRZ is a smart pick.
Tip: Pick voltage references with low temperature coefficients. They stay stable when temperatures change.
Option 2: REF5025AIDR
The REF5025AIDR is another strong choice. It gives a 2.5V output with high accuracy and low drift. It’s known for being quiet and stable over time, which is great for precision systems.
Key Features:
Output Voltage: 2.5V
Temperature Coefficient: 3 ppm/°C
Noise: 3 µV p-p (0.1 Hz to 10 Hz)
This part works well in data systems, testing tools, and bridge sensors. Its small size and solid performance make it useful for many industries. If your system needs lower voltage, the REF5025AIDR is worth a look.
Note: The REF5025AIDR fits small spaces, thanks to its compact design.
Option 3: AD7606BSTZ-6RL
The AD7606BSTZ-6RL is special because it combines a voltage reference and an ADC. It has a 6-channel, 16-bit ADC with a built-in 2.5V reference. This makes designs simpler and reduces extra parts.
Key Features:
Channels: 6
Resolution: 16-bit
Integrated 2.5V Reference
This part is great for collecting data and processing signals. Its high resolution and combined design make it powerful and efficient. If you want fewer parts but still need accuracy, the AD7606BSTZ-6RL is a great pick.
Callout: Choose the AD7606BSTZ-6RL if you need both a voltage reference and ADC together.
These options help you find the best part for your system. Each one has special features to match your project needs.
How to Choose the Right Alternative for Your System
Matching Specifications to Application Needs
Picking the right voltage reference starts with knowing your system's needs. Check important details like output voltage, temperature coefficient, and noise levels. For example, systems needing precise measurements benefit from a low temperature coefficient (ppm/°C). This keeps the voltage steady even when temperatures change. Low noise is also key for devices like medical tools or factory sensors where clear signals are important.
Follow a step-by-step method to choose wisely. Ask yourself:
Does the part meet your system's voltage and accuracy needs?
Can it work well in your environment?
Will it handle the temperature range you expect?
Does it fit with other parts in your design?
Answering these questions helps you find the best match for your project.
Tip: Always check datasheets to ensure the specs fit your design.
Cost vs. Performance Trade-offs
Finding the right balance between cost and performance is important. High-quality parts can be expensive, but some options offer good value. For example:
The MAX6002 costs $0.39 for 2500 pieces but has more tempco error, making it less ideal for precise systems.
The MAX6102 costs $0.55 for 2500 pieces and offers better accuracy, making it a smart choice.
The MAX6325 is great for very stable designs but costs more.
When replacing the ADR4525BRZ, think about whether the extra performance is worth the price. Sometimes, lowering accuracy needs can save money without hurting how the system works.
Note: Think about long-term savings, like lower power use or better reliability.
Tips for Testing and Validating Alternatives
Testing makes sure the chosen part works well in your system. Use these methods to check performance:
Testing Method | Purpose |
|---|---|
High-Temperature Operating Life | Test reliability over time under tough conditions. |
High-Temperature Reverse Bias | Check stability with high voltage and heat. |
DC and RF Testing | Confirm performance in real-world situations. |
For better testing results:
Use cooling during HTOL tests to avoid overheating.
Keep temperatures steady during HTRB tests for accurate results.
Create real-world conditions to see how the part performs.
These steps help you spot problems early and ensure the part works well for your system.
Callout: Testing isn’t just about passing; it’s about making sure the part lasts and stays reliable.
Picking the right voltage reference is very important for precise systems. You’ve seen the downsides of the ADR4525BRZ and learned about three great options: ADR4550BRZ, REF5025AIDR, and AD7606BSTZ-6RL. These parts have special features like low noise and combined designs.
Tip: Always check if a part’s specs match your system’s needs.
Think about what your project needs. Look at datasheets and ask experts for advice. This helps your system stay accurate and reliable. Don’t settle—choose the best part for your design!
FAQ
1. Why think about alternatives to the ADR4525BRZ?
The ADR4525BRZ has limits like fixed voltage and high power use. It can also be hard to find due to supply issues. Choosing other options keeps your project on time and fits your design needs.
Tip: Always have a backup part to avoid project delays.
2. How do you pick the right voltage reference?
Start with your system's needs. Look at specs like voltage, temperature stability, and noise. Make sure the part works well in your design and environment.
Note: Check datasheets to compare parts and confirm they fit.
3. Why is low noise important in voltage references?
Low noise keeps signals steady and accurate. This is very important for tools like medical devices or factory sensors where precision is key.
4. Can integrated parts like the AD7606BSTZ-6RL work for all systems?
Integrated parts are great for small designs needing fewer pieces. But they might not work for systems needing more custom setups.
5. How do you test a new voltage reference?
Try tests like high-temperature life (HTOL) and DC testing. These check if the part works well in real-world conditions.
Callout: Testing helps make sure the part lasts and works reliably in your system.
