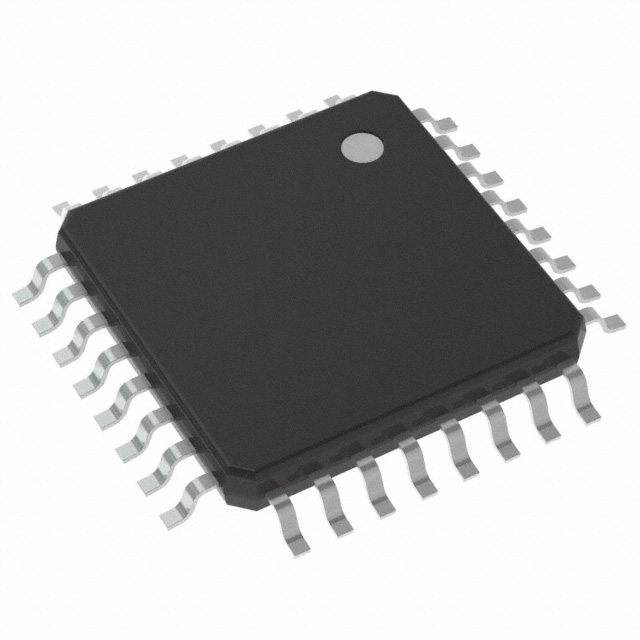

How ATMEGA168PA-AU MCU Redefines IoT Sensor Nodes

The ATMEGA168PA-AU, a Low-Power 8-Bit MCU for IoT Sensor Nodes, plays a crucial role in modern IoT sensor applications. Specifically designed to conserve energy, the ATMEGA168PA-AU is ideal for devices powered by small batteries. For instance, addressing issues like broken sensors in IoT devices can significantly reduce energy consumption. This microcontroller delivers reliable performance while maintaining low power usage. Its compact size allows it to seamlessly integrate into small devices, making it an excellent choice for a wide range of IoT applications. By utilizing this Low-Power 8-Bit MCU, you can enhance the efficiency of your projects and extend battery life.

Key Takeaways

• The ATMEGA168PA-AU microcontroller uses very little power. This makes it perfect for battery-powered IoT gadgets.

• Use its sleep modes to save battery. Devices can work for years without needing new batteries.

• Its built-in ADC helps sensors give accurate data. This is important for things like health checks and tracking the environment.

• Pick the right communication method it supports. This ensures data is sent properly in different IoT uses.

• The AVR Toolchain makes creating projects easy for beginners. It also helps experts work faster.

IoT Sensor Nodes and Why They Matter

What Are IoT Sensor Nodes?

IoT sensor nodes are small devices that make IoT possible. They gather information from their surroundings using sensors and send it to a central system. Think of them as tiny helpers connecting the real world to the digital one. For example, a temperature sensor in a smart thermostat is an IoT sensor node. It checks the room's temperature and sends the data to the thermostat, which adjusts heating or cooling.

These nodes are important for creating smarter systems. They help monitor and make decisions in real-time for industries like healthcare, farming, and shipping. According to the Draft ISO IoT Reference Architecture, these nodes work with other parts like connectivity, data processing, and user interfaces.

Main Parts of IoT Sensor Nodes

Each IoT sensor node has key parts:

• Sensors: These check things like temperature, motion, or humidity.

• Microcontroller: This is the brain that processes data and handles communication.

• Communication Module: It uses Zigbee, Wi-Fi, or BLE to send data to other devices or the cloud.

• Power Source: Batteries or energy-harvesting systems give the power needed.

New technology has made IoT nodes better and cheaper. For example, low-power wide-area network (LPWAN) technologies like LoRa and Sigfox save energy while staying connected.

Problems in Designing IoT Sensor Nodes

Making IoT sensor nodes is not easy. A big problem is limited power, especially for battery-powered nodes. The microcontroller and other parts must use very little energy to save battery life.

Another issue is keeping communication reliable in places with interference or long distances. New technologies like 3GPP Release 13 and 14 help solve this. Security is also a big concern since IoT nodes handle private data. Strong encryption and authentication are very important.

Case studies show more problems. For example, researchers find it hard to get data for system monitoring. Privacy issues also come up when adding IoT nodes to factories.

Features of the ATMEGA168PA-AU

Low Power Use and Sleep Modes

The ATMEGA168PA-AU is a low-power 8-bit MCU. It works well for devices that run on batteries. Its sleep modes help save energy when not in use. For example, the Power-Down mode stops the CPU but keeps key functions like the watchdog timer. This helps IoT devices last longer without needing new batteries often.

The ATMEGA168PA-AU has different sleep modes like Idle, Standby, and Power-Save. These modes let you balance energy use and performance. The microcontroller only uses power when needed, making batteries last longer. Compared to the ATMEGA328P-AN, it uses less energy, making it great for IoT projects.

8-Bit Design for Easy Processing

The ATMEGA168PA-AU has an 8-bit design, perfect for IoT sensor nodes. This design makes data processing simple and efficient. It’s great for projects where cost and power saving are important.

Here’s why the 8-bit design is helpful for IoT:

The ATMEGA168PA-AU’s 8-bit design helps make reliable IoT sensor nodes. It’s simple and works well, making it a smart choice for developers.

Built-In ADC for Sensor Data

The ATMEGA168PA-AU has a built-in Analog-to-Digital Converter (ADC). This is important for getting accurate data from sensors. The ADC changes analog signals into digital data the microcontroller can use. For example, in a temperature system, the ADC turns the sensor’s voltage into a digital number showing the temperature.

But ADC accuracy can be affected by errors like quantization or nonlinearity. For instance, an ADC with ±0.610 mV resolution might have an error of ±1.83 mV. Even with these issues, the ATMEGA168PA-AU’s ADC works well. It helps IoT devices collect and use data correctly. This is important for tasks like tracking the environment or health monitoring devices.

Versatile Communication Protocols

IoT sensor nodes need protocols to share data easily. The ATMEGA168PA-AU supports many protocols, making it useful for different IoT tasks. This flexibility helps devices connect smoothly, even in tricky networks.

Protocols decide how devices send and receive data. Each one has special features for certain jobs. For example, MQTT is great for low-data connections, while CoAP works well for small devices. The ATMEGA168PA-AU works with many protocols, so you can pick the best one for your project.

Here’s a simple table of some protocols and their uses:

With these protocols, the ATMEGA168PA-AU helps IoT devices work well in many places. Whether it’s for a smart home or a factory, this microcontroller gives you the options you need.

Wide Operating Voltage and Temperature Range

IoT devices often face tough conditions. They might need to work in very hot or cold places or with changing power levels. The ATMEGA168PA-AU handles these challenges well.

This microcontroller works with voltages from 1.8V to 5.5V. This means it can run on small batteries or bigger power systems. It keeps working even if the power drops.

It also works in extreme temperatures, from -40°C to 85°C. This makes it great for outdoor use, like farming or weather monitoring. It can handle freezing winters and hot summers without problems.

Choosing the ATMEGA168PA-AU gives you a strong and reliable option for IoT projects. It works well in many conditions, so your devices stay dependable wherever they are used.

Enhancing IoT Sensor Nodes with ATMEGA168PA-AU

Extending Battery Life in IoT Devices

Battery life is a big problem for IoT sensor nodes. Devices need to work long without changing batteries often. The ATMEGA168PA-AU, a low-power 8-bit MCU, helps solve this issue. It has special sleep modes to save energy when not in use. For example, the Power-Down mode turns off the CPU but keeps key functions like the watchdog timer running.

This microcontroller offers different sleep modes, such as Idle and Power-Save. These modes let you balance energy use and performance. Using these modes can make your device's battery last much longer. Imagine a sensor in a remote area working for years on one battery. With the ATMEGA168PA-AU, this is possible.

It also works with a wide voltage range (1.8V to 5.5V). This means it can keep running even if the battery power gets low. This feature makes it perfect for battery-powered IoT devices that need to work reliably.

Tip: Use sleep modes based on how often your device is active.

Real-Time Data Processing Capabilities

IoT sensor nodes need to handle data quickly and easily. The ATMEGA168PA-AU does this well with its 8-bit architecture. This design makes data processing simple and saves energy. For example, it can monitor temperature or detect motion in real-time, giving fast results.

The built-in ADC (Analog-to-Digital Converter) makes it even better. It changes signals from sensors into digital data the microcontroller can use. For instance, in a health device, the ADC can turn heart rate signals into useful data. This helps the device give accurate and quick feedback to users.

The 8-bit architecture also keeps code small, saving memory space. This is great for IoT devices with limited resources. Choosing the ATMEGA168PA-AU lets you create sensor nodes that are both efficient and affordable.

Reliable Communication in IoT Networks

Communication is very important for IoT systems. Sensor nodes must send and receive data without problems. The ATMEGA168PA-AU supports many communication protocols, making it useful for different tasks.

For example, it works well with low-power protocols like Zigbee and BLE. These are great for devices that run on batteries. It also supports strong protocols like TCP/IP for jobs needing high reliability. This makes sure your devices can connect easily, whether in a smart home or a factory.

The microcontroller works in extreme temperatures (-40°C to 85°C). This helps it stay reliable in tough places like outdoors or industrial areas.

Note: Picking the right protocol can improve energy use and performance.

Easier Development with AVR Toolchain

The AVR Toolchain makes using the ATMEGA168PA-AU simple and effective. It gives you all the tools needed to write, test, and fix your code. Whether you're new or experienced, this toolchain helps you create dependable IoT sensor nodes easily.

What Is the AVR Toolchain?

The AVR Toolchain is a group of software tools for programming AVR microcontrollers like the ATMEGA168PA-AU. It includes:

• AVR-GCC Compiler: Changes your code into a language the microcontroller understands.

• AVR-Libc: A set of ready-made functions to save time.

• AVRDUDE: Transfers your code to the microcontroller.

• Debugging Tools: Helps you find and fix mistakes in your code.

These tools work together to make development faster, so you can focus on building creative IoT projects.

Why Use the AVR Toolchain?

The AVR Toolchain has many benefits that make it great for working with the ATMEGA168PA-AU:

1. Easy to Use: The tools are simple and have clear instructions. Even beginners can learn quickly.

2. Works on Many Systems: It runs on Windows, macOS, and Linux, giving you options.

3. Free to Use: The toolchain is open-source, so anyone can use it without cost.

4. Efficient Performance: The AVR-GCC compiler creates fast and power-saving code for your devices.

Tip: Start with small projects to learn the toolchain. Move to harder tasks as you get better.

How to Begin with the AVR Toolchain

Starting with the AVR Toolchain is easy. Follow these steps to set up your tools:

1. Download and Install: Go to the Microchip website and download the AVR Toolchain. Install it on your computer.

2. Pick an IDE: Use an IDE like Atmel Studio or Visual Studio Code. These make writing and managing code easier.

3. Write Code: Use C language to write your program. Here's a simple example to blink an LED:

#include <avr/io.h>
#include <util/delay.h>

int main(void) {
    DDRB |= (1 << PB0); // Set PB0 as output
    while (1) {
        PORTB ^= (1 << PB0); // Toggle PB0
        _delay_ms(1000); // Wait 1 second
    }
    return 0;
}

4. Compile Code: Use the AVR-GCC compiler to turn your code into a format the microcontroller understands.

5. Upload Code: Use AVRDUDE to send the compiled code to the ATMEGA168PA-AU.

Note: Always test your program on a development board before using it in your IoT device.

Advantages for IoT Projects

The AVR Toolchain helps you build reliable and efficient IoT sensor nodes. It makes coding easier, saves time, and ensures your devices work well. With this toolchain, you can focus on creating smarter and energy-saving IoT solutions.

The AVR Toolchain gives you everything needed to use the ATMEGA168PA-AU fully. It helps you design better IoT devices with less effort.

Real-World Applications of ATMEGA168PA-AU

Smart Home Automation

The ATMEGA168PA-AU helps make smart homes work better. It can control things like lights, thermostats, and locks. Its low power use means battery devices, like motion sensors, last longer.

For example, think of lights that change brightness during the day. The microcontroller reads data from light sensors and adjusts the lights. Its built-in ADC gives accurate readings, and its communication options connect it to other smart devices easily.

Tip: Use the ATMEGA168PA-AU for energy-saving home ideas, like smart blinds or temperature systems.

Environmental Monitoring Systems

Tracking the environment needs devices that are reliable and save energy. The ATMEGA168PA-AU is great for this. It can help build tools to check air, soil, or water conditions.

For example, a weather station can use it to read temperature and humidity sensors. It works in extreme weather, from cold winters to hot summers. Its sleep modes save energy, making it perfect for solar-powered or battery-run stations.

Note: The ATMEGA168PA-AU’s support for many communication protocols makes sending data to the cloud easy.

Industrial IoT (IIoT) Solutions

Factories use IoT devices to work smarter and safer. The ATMEGA168PA-AU fits well in these setups. It can monitor machines, track items, or control systems.

For instance, sensors with this microcontroller can spot machine problems in factories. It processes the data fast and alerts the team. Its strong design works well even in tough factory conditions.

Tip: Use the ATMEGA168PA-AU to create systems that predict problems and save money.

Wearable Health Devices

Wearable health gadgets have changed how we check our health. These devices, powered by microcontrollers like the ATMEGA168PA-AU, give real-time body data. They track important signs like heart rate, blood pressure, and oxygen levels. For example, fitness bands use sensors to measure activity and sleep. The microcontroller processes this data and sends it to your phone.

The ATMEGA168PA-AU uses very little power, perfect for wearables. Nobody wants to charge their fitness tracker daily. This microcontroller helps devices work longer by saving energy. Its built-in ADC changes sensor signals into digital data for accurate results.

Tip: Use the ATMEGA168PA-AU to make wearables that save energy and give accurate health data.

Another benefit is its small size. Wearables need to be light and comfy. The ATMEGA168PA-AU fits into tiny designs without losing performance. It also supports many communication protocols, making data sharing easy.

Wearable health gadgets with this microcontroller can improve your life. They keep you updated on your health and help you make smart choices. Whether tracking fitness or managing health issues, these devices are reliable helpers.

Agricultural IoT Applications

The ATMEGA168PA-AU is very useful in farming today. It helps create IoT tools to monitor soil, weather, and crops. For example, a soil moisture sensor can use this microcontroller to check water levels and alert when watering is needed.

Farmers like its ability to handle extreme weather. It works well in freezing winters and hot summers. Its low power use makes it great for solar-powered tools in faraway fields.

Note: Using the ATMEGA168PA-AU in farming can save water and grow better crops.

The microcontroller’s communication features let devices share data easily. For instance, a weather station can send updates to your phone. This helps farmers decide the best time to plant or harvest.

Adding the ATMEGA168PA-AU to farm IoT devices helps save resources and boost efficiency. It’s a smart pick for eco-friendly farming.

The ATMEGA168PA-AU microcontroller is great for IoT sensor nodes. It uses little power, helping batteries last longer. Its communication protocols keep devices connected anywhere.

• Why pick this microcontroller?

  • Its 8-bit design and AVR Toolchain make development easy.

  • It works well in tough conditions, fitting many uses.

Takeaway: The ATMEGA168PA-AU is a smart pick for developers. Its features let you create reliable, efficient, and future-ready IoT devices.

FAQ

1. Why is the ATMEGA168PA-AU great for IoT sensor nodes?

The ATMEGA168PA-AU uses little power and supports many communication methods. It also has a built-in ADC to handle sensor data. These features make it perfect for battery-powered IoT devices.

2. How does the ATMEGA168PA-AU help batteries last longer?

This microcontroller has sleep modes like Power-Down and Idle. These modes save energy when the device is not working. It also works at low voltages, making batteries last longer.

3. Can beginners use the ATMEGA168PA-AU for IoT projects?

Yes! The AVR Toolchain makes it easy to use. Tools like AVR-GCC and AVRDUDE help you write, test, and upload code. Even beginners can learn quickly.

4. What sensors can work with the ATMEGA168PA-AU?

You can use sensors for temperature, motion, light, and humidity. Its built-in ADC changes signals from these sensors into digital data for the microcontroller to process.

5. Is the ATMEGA168PA-AU good for outdoor IoT devices?

Yes! It works in very hot or cold temperatures (-40°C to 85°C). It also handles different power levels (1.8V to 5.5V). This makes it great for outdoor projects like weather or farm monitoring.

Tip: Choose the ATMEGA168PA-AU for tough environments where energy-saving is important.
