LTM4613IV#PBF DC/DC Module Simplifies Communication Systems

The LTM4613IV#PBFDC/DC step-down power supply module Communication equipment simplifies the development of communication systems. With its integrated components, it eliminates the need for additional parts, saving both time and effort during setup. This efficient design ensures smooth and reliable operation, delivering consistent power even under demanding conditions. By streamlining system designs, the LTM4613IV#PBFDC/DC step-down power supply module Communication equipment enhances performance without compromising quality or stability.

The LTM4613IV#PBF is a smart and reliable solution for modern communication systems.

Key Takeaways

• The LTM4613IV#PBF module makes communication systems easier to design.

• It combines many parts into one small unit, saving space.

• It works with input voltages from 5V to 36V.

• You can adjust the output between 3.3V and 15V.

• This makes it useful for communication and industrial systems.

• It is very efficient, with up to 96% energy savings.

• Less energy loss means less heat and longer device life.

• It has features to stop overheating, keeping it stable.

• It works well in temperatures from -40°C to 125°C.

• Check connections and temperature often to keep it working well.

Key Features and Specifications

Compact Design and Space Efficiency

The LTM4613IV#PBF DC/DC module is built to save space. Its small size combines many parts into one unit. This means fewer extra parts are needed. The design makes your printed circuit board (PCB) simpler and smaller.

This module is great for tight spaces where size matters. It helps you create neat designs without losing performance or dependability.

Tip: A smaller design lowers electromagnetic interference (EMI). This improves system stability by keeping parts closer together.

Wide Input Voltage Range and Adjustable Output

The LTM4613IV#PBF module works with many power sources. It accepts input voltages from 5V to 36V. You can set the output voltage between 3.3V and 15V using one resistor. This makes it easy to match your system's needs.

It can also provide up to 8A of current, handling high-power tasks. Whether for communication tools or industrial systems, this module is flexible and reliable.

The adjustable output removes the need for multiple power supplies, simplifying your design.

High Efficiency and Low EMI Compliance

Efficiency is key, and the LTM4613IV#PBF delivers. It has a typical efficiency of 96%, saving energy and reducing heat. This boosts performance and helps your parts last longer.

The module meets low EMI standards, so it won’t disturb other devices. Its smart design and filters keep power steady, even in noisy places.

The LTM4613IV#PBF module balances efficiency and dependability. It’s a solid choice for managing power in your systems.

Thermal Management and Strong Reliability

Good thermal management keeps systems working well for a long time. The LTM4613IV#PBF DC/DC module has smart features to handle heat and stay reliable in tough conditions.

Built-In Heat Protection

This module has built-in heat protection. It watches the temperature and stops overheating to protect your system.

Note: Overheating can break systems or make them less efficient. The LTM4613IV#PBF stops these problems, keeping things running smoothly.

Smart Heat Dissipation Design

The module’s small design spreads heat evenly. This avoids hot spots and lowers stress on parts.

• Why Heat Dissipation Helps:

  • Stops damage to sensitive parts.

  • Keeps systems steady during long use.

  • Handles high-power tasks without losing reliability.

Works in Extreme Temperatures

The module works well in temperatures from -40°C to 125°C. It’s great for places with changing or extreme heat.

Built to Last

The LTM4613IV#PBF is tough and long-lasting. Its strong build and safety features keep it working for years with little upkeep.

Tip: Check system temperatures often and allow airflow to extend its life.

Why Heat Control is Important

Managing heat helps systems work better and last longer. Picking a module with good heat features lowers downtime and boosts performance.

The LTM4613IV#PBF mixes smart heat design with strong reliability, making it perfect for communication tools and industrial systems.

Step-by-Step Guide to Integration

Checking Power Needs

Before using the LTM4613IV#PBF DC/DC module, check your power needs. This helps ensure it works well with your system. Start by finding out the input voltage, output voltage, and current your system needs.

Use this table to compare your system's needs with the module's specs. For example, if your system uses 12V input and needs 5V output at 6A, this module can handle it easily.

Tip: Plan for extra power and temperature changes to keep things running smoothly.

Systems like industrial machines, telecom tools, and car electronics often need different power levels. By checking these needs carefully, you can avoid giving too little or too much power to the module.

Hooking Up the Module

After knowing your power needs, connect the module to your system. Follow these steps to set it up:

1. Prepare the PCB: Make sure your circuit board has enough space and good connections for the module. Keep wires short to reduce noise.

2. Connect Input Power: Attach the power source to the VIN and GND pins. Check that the input voltage is between 4.5V and 36V.

3. Connect the Load: Link your system's load to the VOUT and GND pins. Make sure the load stays under the 8A limit.

4. Add Extra Parts: You might need extra capacitors or resistors for stability. Check the datasheet for advice.

Note: Check all connections before turning on the power to avoid damage.

Adjusting Output Voltage and Current

The LTM4613IV#PBF module lets you change the output voltage. You can do this with one resistor. Here's how:

1. Choose a Resistor: Use the formula in the datasheet to pick the right resistor for your desired voltage. For example, to get 5V output, pick a resistor that matches the calculation.

2. Install the Resistor: Solder the resistor to the correct pins on the module. Make sure it’s secure to avoid voltage changes.

3. Check the Voltage: Use a multimeter to measure the output voltage after powering up. Adjust the resistor if needed.

4. Set Current Limits: If your system needs current limits, follow the datasheet to set them.

Pro Tip: Test the module with your system running to make sure it works well and meets your needs.

By following these steps, you can set up the LTM4613IV#PBF module easily. It will provide steady power for your communication or industrial systems.

Testing and Checking System Performance

After adding the LTM4613IV#PBF module to your system, testing is key. This ensures it works well and meets your power needs. Follow these steps to check its performance.

1. Check Input and Output Values

Start by measuring input voltage, output voltage, and current. Use tools like a multimeter to confirm the module is within its range.

• Input Voltage: Make sure it’s between 5V and 36V.

• Output Voltage: Check it matches your set value, like 5V or 12V.

• Output Current: Confirm it stays below the 8A limit.

Tip: Steady readings mean the module is working correctly.

2. Test Efficiency

Efficiency is important for saving energy and reducing heat. The LTM4613IV#PBF can reach 96% efficiency, which helps parts last longer.

• High efficiency lowers energy use and heat buildup.

• Less heat keeps the system safe in hot environments.

Pro Tip: Compare your efficiency results to the 96% standard.

3. Try Different Loads

Test the module with different loads to see how it performs. Slowly increase the load to check if it keeps stable power.

• Light Load: Test at low power use.

• Full Load: Check if it handles up to 8A without problems.

• Changing Load: Test how it reacts to quick load changes.

Note: Stable power under all loads shows the module is reliable.

4. Watch Heat Levels

Good heat control is important for long use. Use a thermal camera or sensors to check the module’s temperature.

• Keep the temperature between -40°C and 125°C.

• Make sure heat spreads evenly to avoid hot spots.

Alert: If it gets too hot, improve cooling or airflow.

5. Check EMI Levels

Electromagnetic interference (EMI) can affect nearby devices. The LTM4613IV#PBF is built to keep EMI low. Use an EMI tester to confirm this.

• Test the module in its working area and measure EMI.

• Make sure it meets standards to avoid issues in sensitive systems.

6. Write Down Results

Record all test results, like voltage, efficiency, and heat levels. This helps track performance and fix problems later.

Tip: Regular checks keep the module running smoothly and catch problems early.

By following these steps, you can make sure the LTM4613IV#PBF module works well. This keeps your system running efficiently and reliably in all conditions.

Use Cases and Applications

Powering Communication Equipment

The LTM4613IV#PBF DC/DC module is great for communication systems. It works efficiently, saving energy and reducing heat. This keeps systems stable, even in tough conditions. Its input voltage range of 5V to 36V and adjustable output (3.3V to 15V) make it flexible for different setups.

The module has a low-noise design with a built-in input filter. This helps reduce interference, which is important for RF systems and precision tools. It can provide up to 8A of current, making it ideal for high-power communication devices.

Tip: Use this module in RF systems to keep signals clear and steady.

Supporting Industrial Control Systems

Industrial systems need reliable power, and this module delivers. Its high switching speed handles quick load changes well. It meets EN55022B EMI standards, so it won’t interfere with other devices.

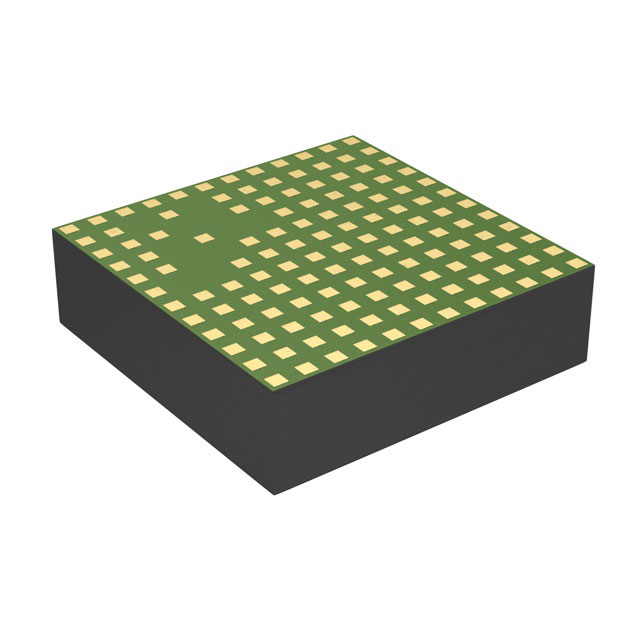

The module’s small size (15mm × 15mm × 4.32mm) saves space on circuit boards. It works in temperatures from -40°C to 125°C, making it dependable in harsh conditions.

Note: Check system performance often to keep industrial setups running smoothly.

Applications in IoT and Automation

The LTM4613IV#PBF module is perfect for IoT and automation. Its efficiency (up to 96%) and wide input range (5V to 36V) make it great for embedded systems and medical tools. It works in temperatures from -40°C to 125°C, so it’s reliable in many environments.

This module combines key parts like a regulator, MOSFETs, and an inductor. This design makes power conversion simple and reduces extra parts, which is helpful for small IoT devices.

• Applications include:

  • Embedded systems

  • Telecom tools

  • Industrial automation

  • Medical devices

  • Data centers

The LTM4613IV#PBF module provides efficient power, helping IoT and automation systems run smoothly.

Pro Tip: Use this module in IoT devices to save space without losing performance.

Benefits for High-Density and Space-Constrained Systems

The LTM4613IV#PBF DC/DC module is perfect for small spaces. Its tiny size and built-in parts make it great for crowded designs. You can manage power well without using too much PCB space.

Small Size, Big Performance

This module is only 15mm × 15mm × 4.32mm in size. It fits easily into tight spots like telecom tools, IoT gadgets, and portable medical devices. By combining key parts like a regulator, MOSFETs, and an inductor, it reduces the need for extra components.

Tip: A smaller PCB design saves space and lowers signal problems. This improves how your system works.

Handles Heat Easily

Small systems often struggle with heat. The LTM4613IV#PBF solves this with smart heat control. It works well in temperatures from -40°C to 125°C, even in small cases.

Perfect for Tight Spaces

This module is ideal for aerospace, cars, or factory machines. Its low EMI design ensures it won’t mess with nearby parts, even in crowded circuits.

Pro Tip: Use the LTM4613IV#PBF in layered PCB designs to save space and keep strong performance.

With the LTM4613IV#PBF, you can build compact systems that are reliable and efficient.

Troubleshooting and Best Practices

Fixing Common Problems

When using the LTM4613IV#PBF module, some issues might come up. Solving them early helps it work well.

1. Wrong Input Voltage:
   Using voltage outside 5V to 36V can harm the module. Check the input voltage with a multimeter before turning it on.

2. Bad Output Settings:
   Picking the wrong resistor can make the output voltage unstable. Look at the datasheet to find the right resistor for your needed voltage.

3. Interference from Noise:
   Long PCB wires or bad grounding can cause EMI problems. Keep wires short and use good grounding to lower interference.

Tip: Check all connections and parts placement before powering up. This avoids damage and keeps the module working well.

Improving Heat Control

Good heat management is important to keep the LTM4613IV#PBF module working longer. Too much heat can hurt its performance or break it.

• Allow Airflow: Put the module where air can move freely. Don’t place it in tight spaces without airflow.

• Add Heat Sinks: For high-power tasks, use a heat sink to remove heat.

• Watch the Temperature: Check the module’s temperature often. Keep it between -40°C and 125°C.

Pro Tip: Use thermal pads or special materials to help spread heat in small designs.

Keeping It Stable in Changing Conditions

The LTM4613IV#PBF module can handle changes, but taking care of it helps it stay steady.

• Sudden Voltage Changes: Use input capacitors to keep the power supply stable during spikes.

• Changing Loads: Test the module with different loads to make sure it works well.

• Dust and Moisture: Protect the module with covers or coatings to avoid damage.

Alert: Regular checks and cleaning help stop problems and make the module last longer.

By fixing these problems and following these tips, the LTM4613IV#PBF module will work well in your system.

Keeping the Module Reliable for a Long Time

To make sure the LTM4613IV#PBF module lasts, take care of it. Follow these simple steps to keep your system working well and avoid problems.

1. Check Often

Look at the module and nearby parts regularly. Watch for damage like loose wires, burnt spots, or broken solder.

• Check Connections: Make sure wires and terminals are tight. Loose wires can cause overheating or power issues.

• Clean Dust: Remove dust from the module and PCB to stop heat buildup.

Tip: Use a soft brush or air spray to clean without breaking anything.

2. Watch How It’s Working

Keep the module within its safe limits to avoid damage.

Use tools to check voltage, current, and temperature. Fix any issues if numbers go outside these ranges.

3. Stop It From Overheating

Too much heat can break the module.

• Let air flow around the module. Don’t block it in tight spaces.

• Add heat sinks or pads if it gets too hot during heavy use.

Pro Tip: Use temperature sensors to catch overheating early and protect the module.

4. Replace Old Parts

Change old parts like capacitors or resistors before they fail. Worn-out parts can make the module work poorly.

By doing these things, the LTM4613IV#PBF module will stay strong for years. Regular care saves money and keeps your system running smoothly.

The LTM4613IV#PBF DC/DC step-down module is efficient and dependable. Its small size and good heat control make designs easier. It keeps working well in communication systems or industrial tools.

This module handles different power needs with its wide input range. You can adjust the output to fit your system. Use it for projects needing strong performance in tight spaces.

FAQ

1. Why is the LTM4613IV#PBF good for small designs?

Its small size (15mm × 15mm × 4.32mm) includes key parts like a regulator and MOSFETs. This lowers the need for extra parts, saving space on the PCB while keeping strong performance.

Tip: Try this module in layered PCB designs to save space and improve function.

2. How can you change the module's output voltage?

To change the output voltage, pick a resistor using the formula in the datasheet. Attach the resistor securely to the right pins to set the voltage you need.

Alert: Always check the output voltage with a multimeter after making changes.

3. Can this module work in very hot or cold places?

Yes, it works well in temperatures from -40°C to 125°C. Its smart heat control keeps it running smoothly in tough conditions.

4. What are the EMI benefits of the LTM4613IV#PBF?

The module meets EN55022B EMI rules, so it doesn’t interfere with nearby devices. Its low-noise design is great for sensitive tools like RF systems.

Pro Tip: Keep PCB wires short to lower EMI problems even more.

5. How can you keep the module working for a long time?

Take care of it regularly. Check connections, clean off dust, and watch the temperature. Replace old parts like capacitors before they stop working.

Note: Use airflow or heat sinks to stop overheating during heavy tasks.
