MAX6675ISA+T and Its Impact on Precise Temperature Control

The digital temperature control chip MAX6675ISA+T for K-type thermocouples is designed to measure temperatures with high accuracy, which is crucial for various applications. The MAX6675ISA+T converts thermocouple signals into digital data, facilitating straightforward usage. It provides consistent results, making it a favored choice in industries that require precise temperature control.

Key Takeaways

• The MAX6675ISA+T chip gives accurate temperature readings with 0.25°C steps. It works well for precise tasks in labs and HVAC systems.

• It has cold-junction compensation, so readings stay correct even if the surrounding temperature changes.

• The chip uses a simple SPI interface, making it easy to connect to microcontrollers like Arduino. This makes setting up projects faster and simpler.

• Its temperature range of 0°C to +1024°C lets it work in many areas, like cooking or science experiments.

• The MAX6675ISA+T is affordable and small, with useful features that save money and energy.

What is the MAX6675ISA+T?

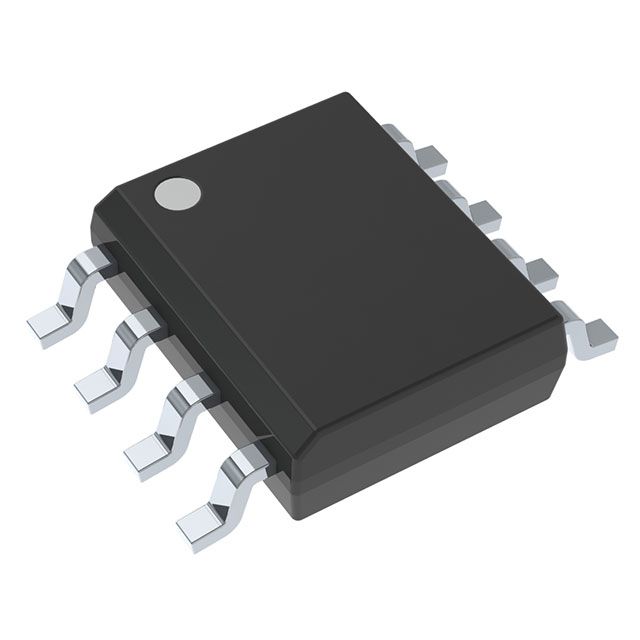

Overview of the digital temperature control chip MAX6675ISA+T for K-type thermocouple

The MAX6675ISA+T is a chip that changes thermocouple signals into digital data. It works with K-type thermocouples and measures temperatures very accurately. This is possible because of its advanced design. The chip has a 12-bit ADC that turns analog signals into digital ones. This makes sure the readings are correct, even in tough conditions.

Some key features of the chip are:

• Cold-junction compensation: Fixes errors caused by temperature changes at the connection point.

• SPI-compatible interface: Lets you connect it easily to microcontrollers.

• Wide temperature range compatibility: Measures temperatures from 0°C to +1024°C for many uses.

The small size of the MAX6675ISA+T makes it great for tight spaces like labs or factories.

Purpose in temperature measurement systems

The MAX6675ISA+T is important for systems that measure temperature. It changes signals from K-type thermocouples into digital data. This removes the need for complicated signal processing. You can focus on adding the chip to your system.

Using the MAX6675ISA+T, you get clear temperature readings with little effort. Its small size and low power use make it perfect for modern devices.

Importance for precise temperature control

Accurate temperature control is needed in areas like HVAC, factories, and research. The MAX6675ISA+T helps by giving exact readings with cold-junction compensation. Its 12-bit ADC provides 0.25°C resolution, which is great for detailed work.

The chip can also detect if the thermocouple is disconnected. This makes it more reliable. Whether you’re working in a factory or a lab, the MAX6675ISA+T gives steady and trustworthy results.

Key Features of the MAX6675ISA+T

Cold-junction compensation

Cold-junction compensation is a key feature of the MAX6675ISA+T. It keeps temperature readings accurate, even if room temperatures change. This feature fixes errors caused by temperature shifts at the connection point. The chip has this built-in, so no extra parts are needed.

The MAX6675ISA+T uses a 12-bit system to digitize signals. It can measure temperature changes as small as 0.25°C. Between 0°C and +700°C, it stays accurate within 8 LSBs. This makes it reliable for tough environments.

This feature is helpful in industries like food production and research labs. Small temperature changes can affect results in these fields.

12-bit ADC resolution

The MAX6675ISA+T has a built-in 12-bit ADC (Analog-to-Digital Converter). This lets it turn thermocouple signals into very accurate digital data. Each step equals a tiny 0.25°C temperature change.

This accuracy is important for jobs like factory controls or medical tools. The chip gives steady readings, so no extra processing is needed. This saves time when adding it to your system.

The MAX6675ISA+T's high-resolution ADC ensures accurate and dependable temperature readings.

SPI interface

The MAX6675ISA+T uses an SPI (Serial Peripheral Interface) to share data. This makes it easy to connect to microcontrollers. The SPI needs only a few pins, so your circuit stays simple.

The SPI works in a read-only mode, so you can quickly get data. You don’t need to send commands, which saves time. This is great for projects using Arduino or similar tools.

The SPI also removes the need for extra parts, making setups easier. Whether for heating systems or lab tools, the MAX6675ISA+T fits smoothly into your designs.

Wide temperature range compatibility

The MAX6675ISA+T works well across a big temperature range. It measures from 0°C to +1024°C, covering both cold and hot settings. This makes it useful for factories, labs, and home devices. You don’t have to worry about it not working in extreme conditions.

Why is a wide temperature range important?

A large range helps track extreme temperatures accurately. For example:

• Low temperatures: Great for freezers or science experiments needing exact cooling.

• High temperatures: Useful for hot furnaces or metalwork with high heat.

Tip: If your project has changing temperatures, the MAX6675ISA+T gives steady readings.

How does the MAX6675ISA+T do this?

The chip uses special thermocouple tech to measure heat reliably. Its cold-junction compensation fixes errors from temperature changes. This keeps readings correct, even at extreme levels.

Why it helps your projects

The MAX6675ISA+T lets you build systems for tough conditions. Whether it’s a smart oven or a chemical test, its wide range is flexible and dependable.

🌡️ Fun Fact: The MAX6675ISA+T can tell if the thermocouple is unplugged. This adds safety to your design.

This feature makes the chip a great pick for temperature systems. It gives accurate results, no matter the situation.

How the MAX6675ISA+T Works

How the chip works

The MAX6675ISA+T changes signals from a K-type thermocouple into digital data. It uses a 12-bit ADC to make sure readings are accurate. When the thermocouple senses a temperature change, it creates a small voltage. The chip boosts this voltage and turns it into digital data that microcontrollers can read easily.

A key feature of the chip is cold-junction compensation. This fixes errors caused by temperature changes where the thermocouple connects to the chip. This means you get correct readings even if the environment changes a lot.

The MAX6675ISA+T uses SPI communication to send data quickly to microcontrollers. It can also detect if the thermocouple is disconnected. This makes it more reliable for measuring temperatures.

Connecting to thermocouples

Hooking up the MAX6675ISA+T to a thermocouple is simple. It works with K-type thermocouples, which are strong and handle a wide range of temperatures. To connect, attach the thermocouple’s positive and negative wires to the chip’s input pins.

The chip talks to microcontrollers using SPI. You need four connections: Chip Select (CS), Serial Clock (SCK), Serial Data Out (SO), and Ground (GND). Once connected, the chip sends temperature data in digital form to the microcontroller.

Helpful guides for using the MAX6675ISA+T include:

• A tutorial showing how to measure temperature with a K-type thermocouple, MAX6675, and Arduino. It includes wiring diagrams and example code.

• Another guide explains how to set up the MAX6675 module with a K-type thermocouple probe. It shows how well the chip works with these thermocouples.

These resources make it easy to add the MAX6675ISA+T to your projects.

Example: Using the MAX6675ISA+T with Arduino

The MAX6675ISA+T works well with Arduino for temperature projects. You connect the chip to the Arduino and write a program to read and show temperature data.

You’ll need:

• MAX6675 module

• K-type thermocouple

• Arduino board

• Jumper wires

Here’s how to set it up:

1. Connect the thermocouple to the MAX6675 module.

2. Use jumper wires to link the module to the Arduino. Connect the CS, SCK, and SO pins to the Arduino’s digital pins.

3. Install the MAX6675 library in the Arduino IDE. This library makes communication easier.

Below is an example Arduino program:

#include "max6675.h"

int soPin = 4;  // Serial Data Out
int csPin = 5;  // Chip Select
int sckPin = 6; // Serial Clock

MAX6675 thermocouple(sckPin, csPin, soPin);

void setup() {
  Serial.begin(9600);
  delay(500);
  Serial.println("MAX6675 Thermocouple Test");
}

void loop() {
  Serial.print("Temperature in Celsius: ");
  Serial.println(thermocouple.readCelsius());
  Serial.print("Temperature in Fahrenheit: ");
  Serial.println(thermocouple.readFahrenheit());
  delay(1000);
}

This program reads temperatures in Celsius and Fahrenheit and shows them on the serial monitor. The MAX6675 library handles SPI communication, making it easy to use.

This setup is great for projects like checking oven temperatures or building a weather station. The MAX6675ISA+T is accurate and simple to use, making it a good choice for these tasks.

Applications of the MAX6675ISA+T

HVAC systems

The MAX6675ISA+T is important for HVAC systems. It helps check and control temperature accurately. By linking it to a K-type thermocouple, you can measure heat in air conditioners, heaters, and vents. This keeps systems working well and saves energy.

Its wide temperature range works for homes and businesses. The cold-junction compensation ensures correct readings, even if temperatures change. The MAX6675ISA+T helps keep your space comfortable and efficient.

Tip: Spot temperature changes early with the MAX6675ISA+T to avoid breakdowns.

Industrial process control

Factories need exact temperature control for safety and quality. The MAX6675ISA+T is great for this. It measures high heat with K-type thermocouples in metalwork, chemical plants, and food factories.

Its 12-bit ADC gives detailed readings for better control. The SPI interface makes it easy to connect to systems. Whether checking a furnace or reactor, the MAX6675ISA+T gives reliable data for smooth operations.

Home appliances

The MAX6675ISA+T improves modern home devices. It works in ovens, fridges, and water heaters for exact temperature control. Its small size fits into smart gadgets easily.

It can also find disconnected thermocouples for safety. For example, if your oven’s thermocouple disconnects, the MAX6675ISA+T warns you. This prevents accidents and keeps devices working safely.

Fun Fact: The MAX6675ISA+T measures up to 1024°C, perfect for hot appliances like pizza ovens.

Scientific and laboratory equipment

Scientific tools need exact temperature control for correct results. The MAX6675ISA+T helps by giving steady temperature readings. It works in devices like incubators, thermal cyclers, and spectrometers. These tools need stable conditions for experiments and tests.

Why does temperature accuracy matter in labs?

Temperature changes affect chemical reactions and biological processes. Small shifts can cause wrong results. The MAX6675ISA+T prevents this with 0.25°C accurate readings. Its cold-junction compensation stops environmental changes from ruining measurements.

Tip: Use the MAX6675ISA+T for experiments like PCR or crystallization studies.

Features that help lab equipment

The MAX6675ISA+T has features perfect for science tools:

• Wide temperature range: Works from 0°C to +1024°C for many experiments.

• Compact design: Fits into small lab devices easily.

• Open thermocouple detection: Warns you if the thermocouple disconnects for safety.

Example uses

The MAX6675ISA+T can control heating and cooling in a thermal cycler for DNA tests. It also keeps optical parts in spectrometers at steady temperatures.

🌡️ Fun Fact: The MAX6675ISA+T can spot disconnected thermocouples, adding safety to lab tools.

Using the MAX6675ISA+T ensures your lab devices give accurate and steady results. It’s a great choice for any science setup.

Advantages of the MAX6675ISA+T

High accuracy and reliability

The MAX6675ISA+T gives very accurate temperature readings. Its 12-bit ADC can detect tiny changes of 0.25°C. This is important for jobs like factory work, science experiments, or medical tools.

It also has cold-junction compensation, which fixes errors from temperature changes around it. This keeps readings steady, even in tough places. Whether you’re checking a furnace or doing lab tests, the MAX6675ISA+T gives reliable results every time.

Tip: Use the MAX6675ISA+T for projects needing exact measurements, like quality checks or experiments.

Easy integration with microcontrollers

The MAX6675ISA+T is simple to add to your projects. It uses an SPI interface to connect to microcontrollers like Arduino or Raspberry Pi. You only need a few pins, so your setup stays neat and easy.

The chip works in read-only mode, so you don’t need to send commands to get data. This makes programming faster and simpler. Its small 8-pin design fits into tight spaces, perfect for modern devices.

Note: Beginners and experts can use the MAX6675ISA+T easily with popular microcontroller platforms.

Noise cancellation

Electrical noise can mess up temperature readings, especially in busy places. The MAX6675ISA+T solves this with built-in noise filters. These filters block unwanted signals, keeping your data accurate and stable.

This feature is great for noisy areas like factories or labs with lots of electronics. By cutting out interference, the MAX6675ISA+T ensures your readings stay correct.

Fun Fact: The chip’s noise filters make it perfect for robots or automated systems needing steady data.

Cost-effectiveness

The MAX6675ISA+T is a low-cost option for accurate temperature checks. It combines useful features with a good price, making it great for both beginners and experts. You won’t need extra parts because it has built-in tools like cold-junction compensation and noise filters.

Why is it cost-effective?

Here’s how the MAX6675ISA+T helps save money:

• All-in-one design: It has many features, so no extra circuits are needed.

• Energy-efficient: It uses very little power, cutting down energy costs.

• Small size: Its compact design lowers material expenses for projects.

• Long-lasting: The strong build means fewer replacements over time.

Tip: On a tight budget? The MAX6675ISA+T gives great results without high costs.

Comparing cost to alternatives

The MAX6675ISA+T is cheaper than similar chips. For example, the MAX31855 has similar features but costs more. Both work with K-type thermocouples, but the MAX6675ISA+T is better for simpler projects that don’t need extra thermocouple support.

How it benefits your projects

The MAX6675ISA+T lets you control temperature accurately without spending too much. Whether for smart gadgets or lab tools, it works well and costs less. Its low price doesn’t mean lower quality, making it a great choice for any project needing precise temperature control.

Fun Fact: With the MAX6675ISA+T, you can build high-quality devices while saving money!

Alternatives to the MAX6675ISA+T

Overview of alternative chips

There are other chips like the MAX6675ISA+T for temperature control. The MAX31855 works with many thermocouple types, such as K, J, and T. This makes it useful for projects needing different temperature ranges. Another option is the AD8495, which is simpler and works with K-type thermocouples. It’s good for basic temperature readings without features like SPI communication.

For higher accuracy, the MAX31856 is a great choice. It has a 19-bit ADC resolution, better than the 12-bit resolution of the MAX6675ISA+T. It also includes advanced fault detection, making it reliable for important systems. Each chip has its own strengths, so pick one based on your project’s needs.

Comparison with MAX31855

The MAX31855 is often compared to the MAX6675ISA+T because they are similar. Both work with K-type thermocouples and have cold-junction compensation. But the MAX31855 supports more thermocouple types, making it more flexible. It can measure temperatures up to 1800°C with certain thermocouples.

The MAX31855 has more features but costs more. If you don’t need extra thermocouple support or higher ranges, the MAX6675ISA+T is a cheaper option.

Choosing the right chip for your application

Picking the best chip depends on your needs. First, think about what you’re measuring. For example, if it’s a furnace, you’ll need a chip for high heat. Next, check the environment. Chips like the MAX31856 work better in tough conditions because of their fault detection.

Budget is also important. If money is tight, the MAX6675ISA+T is a good choice. Use this table to help decide:

Tip: If the sensor is far from the instrument, pick a chip like the MAX31856 with better noise protection.

By thinking about these factors, you can find a chip that fits your project’s needs and budget.

The MAX6675ISA+T is a dependable chip for accurate temperature control. It has helpful features like cold-junction compensation and 12-bit resolution. These ensure it gives correct readings in different settings. You can add it easily to systems using thermocouples. It works well in factories, labs, and even home devices. Its ability to measure a wide range of temperatures makes it useful for many tasks needing precision and trustworthiness.

FAQ

What is the MAX6675ISA+T used for?

The MAX6675ISA+T checks temperature with K-type thermocouples. It changes analog signals into digital data for accurate control. You can use it in air systems, factories, home gadgets, and science tools.

How accurate is the MAX6675ISA+T?

The chip has a resolution of 0.25°C and accuracy of ±8 LSBs between 0°C and +700°C. Its cold-junction compensation keeps readings steady, even if the environment changes.

Can I use the MAX6675ISA+T with Arduino?

Yes, the MAX6675ISA+T works well with Arduino. Its SPI interface makes connecting easy. You only need a few wires and the MAX6675 library to start reading temperatures.

Does the MAX6675ISA+T support other thermocouple types?

No, the MAX6675ISA+T only works with K-type thermocouples. If you need other types, try chips like the MAX31855, which supports many thermocouple types.

What makes the MAX6675ISA+T cost-effective?

The MAX6675ISA+T has features like cold-junction compensation, a 12-bit ADC, and noise filters in a small design. It doesn’t need extra parts, saving money while staying reliable.

Tip: Pick the MAX6675ISA+T for projects needing accurate temperature control without spending too much.
