Step-by-Step Guide to Implementing Motor Control with TMS320F2812PGFA

Motor control is important in engineering, like in factories or cars. This guide shows how to use the TMS320F2812PGFA for motor control. It is a strong digital signal processor for accurate and efficient tasks. Its fast processing and built-in tools make it great for motor systems. Follow this guide to use it for reliable and smart solutions.

Key Takeaways

• The TMS320F2812PGFA is a strong chip for motor control. It has a 150 MHz CPU, 12-bit ADC, and two PWM modules for accurate control.

• Using the TMS320F2812PGFA makes motor control easier. It combines important tools, so you need less extra hardware. This saves time and money.

• Follow clear steps to set it up: check the power supply, set up the parts, and load the program to control motors well.

• Use debugging tools like JTAG emulators and Code Composer Studio. These help find and fix problems in your motor control program.

• Keep the system updated and maintained. This improves how it works and keeps your motor control projects running well.

Understanding the TMS320F2812PGFA for Motor Control

Key Features of the TMS320F2812

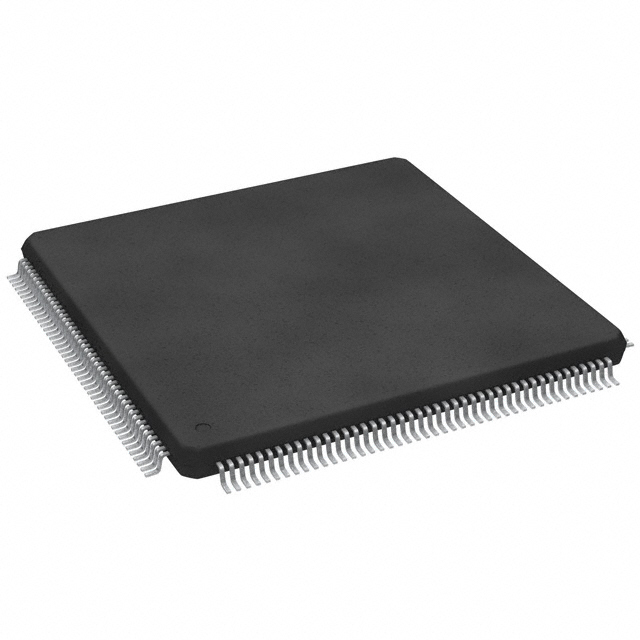

The TMS320F2812PGFA is a strong processor for real-time tasks. It works well when high accuracy and speed are needed. Its 32-bit CPU runs at 150 MHz, handling tough motor tasks easily. The 12-bit ADC converts signals accurately. Two PWM modules help control motor speed and direction. It has 16KB of RAM and 128KB of flash memory for programs and data.

These features make the TMS320F2812PGFA a great choice for motor systems.

Benefits of Using the TMS320F2812PGFA for Motor Control

Using the TMS320F2812PGFA gives you a reliable processor. It runs real-time control tasks for smooth motor movement. Built-in tools like PWM modules and ADCs make motor control easier. You won’t need extra hardware, saving time and money. Its fast performance lets you use advanced control methods. This improves how well your system works overall.

Applications of the TMS320F2812 in Motor Control Systems

The TMS320F2812 is used in many motor control systems. It helps run motors in factories and manufacturing machines. In cars, it powers electric and hybrid vehicle systems. Other uses include digital power supplies and power converters. Its strong design makes it fit for any motor control project.

• Common uses include:

  • Motor control

  • Power conversion

  • Digital power supplies

  • Automotive systems

  • Factory equipment

The TMS320F2812PGFA is a flexible and powerful tool for these jobs.

Setting Up the TMS320F2812PGFA

Hardware Needs for Motor Control

To use the TMS320F2812PGFA for motor control, the hardware must meet certain needs. This helps the system work well and stay reliable. Here are the main hardware details:

• Processor Details: The TMS320F2812PGFA runs at 150 MHz. It uses CMOS technology for fast and efficient processing.

• Power Needs: It needs 1.8-V at 135 MHz or 1.9-V at 150 MHz for the core. It also requires a 3.3-V I/O supply.

• Memory: It has up to 128K × 16 flash memory and other SARAM options. This is enough to store motor control programs and data.

• Peripheral Features: It supports 56 GPIO pins, 45 interrupts, and an external interface for extra memory or devices.

• Development Tools: Tools like Code Composer Studio™ IDE and ANSI C/C++ compilers make programming and debugging easier.

When designing the hardware, plan the board layout carefully. Place components to avoid interference and improve performance. Use the ADS8364 ADC for accurate data sampling. Set up ports for smooth data transfer and control.

Software Tools for Programming the TMS320F2812

You need special software tools to program the TMS320F2812. These tools help you write, test, and upload code easily. Here are the key tools:

Code Composer Studio™ IDE is a great tool for writing and testing code. It supports ANSI C/C++ programming, making it simple to program the TMS320F2812. DSP/BIOS™ offers a real-time system to manage tasks and resources.

Tip: Use JTAG emulators to debug in real time. They help you check the processor's performance and fix problems during development.

First Setup of the TMS320F2812PGFA

Before programming the TMS320F2812, you need to set it up for motor control. Follow these steps:

1. Power Setup: Make sure the processor gets the right voltage (1.8-V core and 3.3-V I/O). Use a steady power source to avoid issues.

2. Peripheral Setup: Turn on the PWM modules to control motor speed and direction. Set up the ADC to read signals from sensors.

3. Memory Setup: Load the firmware into the flash memory. Include motor control programs and setup routines.

4. Clock and System Setup: Configure the oscillator and watchdog timer. These keep the processor running at the correct speed and stable.

5. GPIO Pin Setup: Assign GPIO pins for motor signals, like PWM outputs and sensor inputs.

After setting everything up, you can write and upload the motor control code. A good setup ensures the system works well and avoids errors during operation.

How to Program the TMS320F2812 for Motor Control

Overview of Programming Tools

To program the TMS320F2812, you need helpful tools. These tools make writing, testing, and uploading code easier. They also help fix problems and improve your motor control system. Below is a table showing key programming tools and methods:

Code Composer Studio (CCS) is the main software for programming the TMS320F2812. It supports C and C++ coding and has tools for debugging. DSP/BIOS helps manage tasks in real time. JTAG emulators, like XDS100, upload code and debug systems. These tools ensure your motor control works well.

Tip: Test your control ideas with MATLAB/Simulink before using them on the TMS320F2812. This saves time and avoids mistakes.

Writing and Uploading Code to the TMS320F2812

Programming the TMS320F2812 involves creating code to control motor speed and direction. Start by setting up PWM modules, ADCs, and GPIO pins. These parts are needed for motor control. Follow these steps:

1. Set Up Peripherals: Configure PWM modules to send signals for motor control. Use ADCs to read sensor data, like speed or position.

2. Write Control Code: Create algorithms, like PID, to manage motor performance. Write these in CCS using C or C++.

3. Test Your Code: Use tools like Simulink or MULTISIM to check your code. Make sure PWM signals and ADC readings are correct.

4. Upload Code: Use a JTAG emulator to load the code onto the TMS320F2812. Ensure the processor has proper power during this step.

5. Fix and Improve: Debug the code using CCS tools. Make changes to improve performance and efficiency.

The TMS320F2812 is fast and reliable for real-time motor control. Its Event Managers (EVA and EVB) make PWM-based systems easier to build.

Example Code for Motor Control Applications

Here’s an example program for basic motor control using the TMS320F2812. It sets up PWM and ADC modules for simple operations:

#include "DSP281x_Device.h"  // Include device header file

void main(void) {
    // Initialize system control and peripherals
    InitSysCtrl();
    InitEPwm();  // Initialize PWM module
    InitAdc();   // Initialize ADC module

    // Configure PWM for motor control
    EPwm1Regs.TBPRD = 1500;  // Set PWM period
    EPwm1Regs.CMPA.half.CMPA = 750;  // Set duty cycle to 50%
    EPwm1Regs.AQCTLA.bit.CAU = AQ_SET;  // Set PWM output on up-count
    EPwm1Regs.AQCTLA.bit.CAD = AQ_CLEAR;  // Clear PWM output on down-count

    // Configure ADC for sensor input
    AdcRegs.ADCTRL1.bit.ACQ_PS = 6;  // Set acquisition window
    AdcRegs.ADCTRL2.bit.SOC_SEQ1 = 1;  // Start ADC conversion

    while(1) {
        // Read ADC value and adjust PWM duty cycle
        Uint16 adcValue = AdcRegs.ADCRESULT0;
        EPwm1Regs.CMPA.half.CMPA = adcValue / 2;  // Scale ADC value to PWM duty cycle
    }
}

This program sets up PWM and ADC modules, creates a basic PWM signal, and adjusts it based on sensor data. You can add advanced algorithms like PID for better control.

The TMS320F2812 is widely used in motor control projects. Researchers have shown it works well for tuning DC motors and testing control ideas quickly. It generates accurate PWM signals and improves motor performance.

Note: Always test your code in a simulation before using it on hardware. This prevents damage and ensures the system works correctly.

Testing and Debugging the Motor Control System

Checking Hardware and Software Setup

Before testing, make sure everything is set up right. First, check the power supply. Ensure the processor gets the correct voltage. Look at all connections, like GPIO pins, ADC inputs, and PWM outputs. Loose wires or wrong connections can cause problems.

Next, check the software setup. Open Code Composer Studio and confirm the firmware is loaded. Use debugging tools to see if PWM modules and ADCs are working. Look at system logs to find any setup errors.

Tip: Use an oscilloscope to check PWM signals. Make sure they have the right frequency and duty cycle.

Fixing Common Problems

If something goes wrong, find the issue step by step. If the motor doesn’t work, check the PWM signals. Wrong duty cycles or frequencies can cause issues. Use a multimeter or oscilloscope to measure them. If signals are fine, check the ADC readings. Bad sensor data can mess up control.

Software bugs can also cause trouble. Look for mistakes in your code, especially in PID algorithms. Use breakpoints to check variable values. If the system crashes, check for memory issues or uninitialized variables.

Note: Change one thing at a time. This helps you find the problem faster.

Testing Motor Behavior and Adjusting Settings

Test the motor by running it in different situations. Start with simple tests like starting, stopping, and changing speeds. Watch how the motor reacts. Then, try harder tests, like adding loads, to see how strong the system is.

Adjusting settings like PID gains can make the motor work better. Change these values slowly and watch the results. Tests like those in medical machines show how small changes can improve performance. These tests help systems that need to be very steady.

Tip: Write down test results. This helps track progress and find patterns for better tuning.

Best Practices for Optimizing Motor Control with TMS320F2812PGFA

Making the System Stable and Reliable

To make your system stable, reduce noise and interference. Use shielded wires to stop unwanted signals. Place parts carefully to avoid electromagnetic problems. Check sensors often to keep readings correct. Add watchdog timers to catch issues and stop failures.

For better reliability, use backup systems. For example, add extra power sources to keep motors running during power drops. Test the system in different conditions, like heat or heavy loads, to find weak spots.

Tip: Update your firmware often to fix bugs and work with new hardware.

Boosting Motor Control Efficiency

To make motor control better, improve algorithms and adjust settings. Advanced methods like better PID controllers or predictive torque control can help a lot. Research shows these methods work well in changing conditions.

For electric cars, predictive torque control is better than old methods. It reduces torque ripple and works well without measuring outside disturbances.

Keeping the System in Good Shape

Regular care keeps your motor system working well. Check parts for damage or wear. Clean connections and replace broken pieces quickly. Watch system logs to find problems early.

Updating the system helps it stay modern. Check firmware and tools regularly. Add new features or improve old ones based on feedback.

Note: Write down all updates. This makes it easier to fix problems later.

Using the TMS320F2812PGFA for motor control needs clear steps. First, set up the hardware and software. Next, program the processor to control the motor. Finally, test and improve the system for better performance. These steps help the motor work smoothly and reliably.

The TMS320F2812PGFA has many benefits. Its built-in tools make motor control easier. Its fast speed allows advanced methods to work well. This leads to efficient and steady motor operation in many uses.

Here are some real-world examples of its success:

To make systems even better, try Reliability-Centered Maintenance (RCM):

• Set goals to track progress and improvements.

• Define system limits and find possible failures to stay reliable.

• Use different maintenance methods like fixing issues, regular checks, or condition-based tasks.

Follow this guide to improve your projects. The TMS320F2812PGFA helps you build smarter and more efficient motor systems.

FAQ

1. Why is the TMS320F2812PGFA good for motor control?

It works fast and has built-in PWM and ADC tools. These help control motors without needing extra parts, saving time and money.

2. Can beginners use the TMS320F2812PGFA for motor projects?

Yes, they can! Tools like Code Composer Studio™ make it simple. Start with easy setups and learn advanced features later.

3. How do I fix problems with the TMS320F2812PGFA?

Use JTAG emulators and Code Composer Studio™ to find bugs. Check PWM signals with an oscilloscope and sensor data for errors. Solve one problem at a time.

4. Is the TMS320F2812PGFA good for factories or cars?

Yes, it is! It’s reliable and works well in factories, cars, and power systems. It’s great for jobs needing accuracy and speed.

5. What coding languages work with the TMS320F2812PGFA?

You can use C or C++ to program it. Code Composer Studio™ supports both, making it easy to write and test programs.
