Why the W25Q256JVEIQ is Perfect for Embedded Systems

When building embedded systems, you need strong and fast memory. This is exactly why the W25Q256JVEIQ is the ideal SPI flash chip for embedded applications. With 256Mb of memory, it provides ample storage space. Its impressive 133MHz clock speed ensures that reading and writing data is quick and efficient. Additionally, it operates effectively in temperatures ranging from -40°C to 85°C. The voltage range of 2.7V to 3.6V contributes to power savings. These outstanding features make the W25Q256JVEIQ a favorite among engineers and developers.

Key Takeaways

• The W25Q256JVEIQ has 256Mb of storage, perfect for storing lots of data like pictures.

• It works fast with a clock speed up to 133MHz, helping systems run quicker.

• The chip works well in temperatures from -40°C to 85°C, so it can handle tough conditions.

• It uses very little power, only 1µA in power-down mode, which helps batteries last longer in portable gadgets.

• Its SPI interface makes it easy to connect to different systems, making it a great choice for engineers.

Why the W25Q256JVEIQ is the Best SPI Flash Chip for Embedded Systems

Large Storage for Advanced Projects

Embedded systems often need memory for lots of data. The W25Q256JVEIQ has 256Mb of storage. This makes it great for tasks like image processing or saving data. For instance, it was used in a CubeSat mission. It powered an image classification unit by replacing a smaller flash chip. This was done on a modified STM32F411 board. This example shows how it handles big datasets well. Whether for industrial tools or IoT gadgets, this chip gives the storage you need.

Quick Read/Write for Better Performance

Speed matters in embedded systems, and this chip is fast. It reads and writes data quickly, even with heavy tasks. For example, reading takes just 0.008 seconds. Downloading finishes in under 8 seconds.

These results show it handles data-heavy jobs easily. Its speed is perfect for tasks needing fast data access.

Saves Power for Longer Use

Saving energy is key for battery devices. The W25Q256JVEIQ uses very little power. It works on 2.7V to 3.6V and uses just 1µA in power-down mode.

• Works on 2.7V to 3.6V power.

• Uses only 1µA in power-down mode.

This helps batteries last longer and lowers power use. For IoT or portable devices, this chip saves energy while staying powerful.

Wide Temperature Range and Durability for Tough Conditions

Embedded systems often work in hard environments. You need a memory chip that handles extreme heat or cold. The W25Q256JVEIQ works well in these cases. It can operate between -40°C and 85°C. This means it works in freezing or very hot places. It is great for factories, cars, and outdoor devices.

Another important feature is its durability. The W25Q256JVEIQ lasts a long time. It can handle many read and write cycles without problems. For example, in factories where machines run all the time, this chip stays reliable. It keeps your important data safe and secure.

The chip is also tough against physical stress. It can handle shocks, vibrations, and impacts. This is helpful in cars, where parts move a lot and face rough conditions. Whether for a car system or an outdoor gadget, this chip is strong and dependable.

Tip: Always check a chip's temperature range and durability before buying. The W25Q256JVEIQ is special because it has both features in one chip.

The W25Q256JVEIQ is perfect for tough projects. Its strength and wide temperature range make it a top choice for hard jobs.

Seamless Compatibility with Embedded Systems

SPI Interface for Easy Integration

The W25Q256JVEIQ makes it simple to connect with embedded systems. Its advanced SPI interface helps the chip communicate smoothly with your platform. Here’s why it works so well:

• The Quad I/O SPI interface speeds up data transfers. It’s great for fast applications.

• A high clock speed of 104 MHz allows quicker communication. This reduces delays when sharing data.

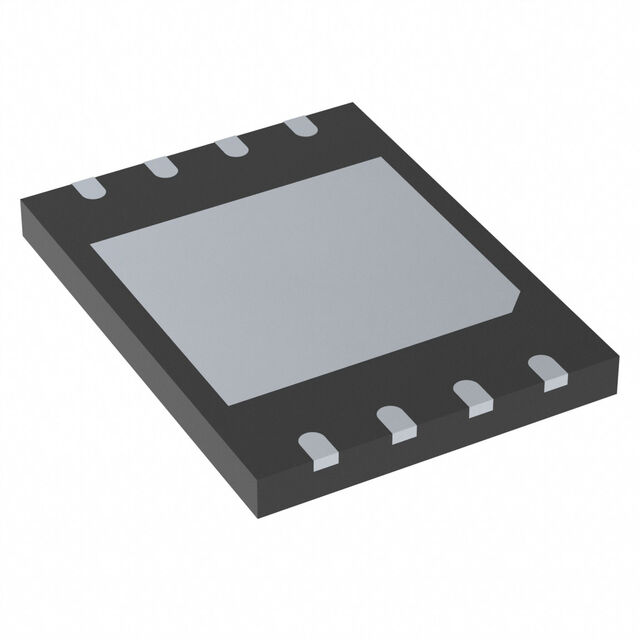

• Its small 8-WDFN package fits easily on crowded circuit boards.

These features make the W25Q256JVEIQ a smart pick for engineers. Whether you’re building a tiny IoT gadget or a big industrial system, this chip fits right into your design.

Versatility Across Embedded Applications

The W25Q256JVEIQ is flexible and works in many embedded projects. Its strong features make it useful for everything from home devices to factory machines. The table below shows its key features and benefits:

These features show why the W25Q256JVEIQ is perfect for embedded systems. It’s versatile enough for many projects, like smart home devices or car systems.

Tip: Always check if a memory chip matches your project’s needs. The W25Q256JVEIQ offers great performance, efficiency, and flexibility, making it a dependable choice for any embedded system.

Comparing the W25Q256JVEIQ to Other SPI Flash Chips

Why It’s Better Than Other Chips

Picking the right SPI flash chip is important. The W25Q256JVEIQ is faster, more efficient, and reliable. It transfers data at high speeds, making it a top choice. Its SPI clock speed goes up to 133MHz. Dual SPI reaches 266MHz, and Quad SPI hits 532MHz. This means it processes data quickly, which is great for time-sensitive tasks.

It also uses less power than other chips. Many chips drain batteries faster, but not this one. It works on 2.7V to 3.6V and uses under 1µA in power-down mode. This makes it perfect for portable devices and IoT gadgets that need to save energy.

The chip is also very durable. It can handle at least 100,000 program-erase cycles per sector. Plus, it keeps data safe for over 20 years. Competing chips don’t last as long, making this one better for long-term projects.

Special Features of the W25Q256JVEIQ

This chip has unique features that make it stand out. It offers advanced security like write-protect options, a unique ID, and security registers. These keep your data safe, which many other chips don’t provide.

Its design is also very flexible. It uses 4KB sectors, which help store and manage data better. This is useful for projects needing frequent updates or changes.

Here’s a simple table of its best features:

These features make the W25Q256JVEIQ a great choice. It works well for both industrial machines and home electronics. This chip is fast, reliable, and built to last.

Real-World Applications of the W25Q256JVEIQ

Industrial Automation

The W25Q256JVEIQ is important for running factory systems. Factories use embedded systems to control machines and track data. This chip gives fast data access for real-time tasks. It works well in tough places like hot or vibrating factories.

For example, it can store firmware and production logs in PLCs. Its wide temperature range makes it reliable for nonstop systems. Fast read/write speeds help reduce delays and keep things running smoothly.

Tip: Pick chips like the W25Q256JVEIQ for systems in harsh conditions.

Consumer Electronics

The W25Q256JVEIQ improves gadgets like smart TVs and cameras. These devices need quick and dependable memory for better performance. The chip’s large storage holds big files like updates and videos.

It also uses less power, which helps batteries last longer. Its small size fits well in slim devices like e-readers.

Imagine a smart TV that starts fast and streams without lag. The W25Q256JVEIQ makes this possible with smooth data handling.

IoT Devices

IoT devices need memory that saves energy and works reliably. The W25Q256JVEIQ is perfect for smart sensors, wearables, and connected appliances.

Its low-power mode saves battery life in IoT gadgets. It handles frequent updates like sensor logs or cloud uploads.

Note: Use chips like the W25Q256JVEIQ for IoT projects needing efficiency and reliability.

The W25Q256JVEIQ supports IoT growth, making devices smarter and stronger.

Automotive Systems

The W25Q256JVEIQ is a great pick for car systems. Modern cars use embedded systems for navigation, entertainment, and safety. This chip offers the speed and strength needed for these tasks.

Why It’s Great for Cars

1. Wide Temperature Range:
   Cars face very hot or cold weather. Whether it’s freezing winter or hot summer, the W25Q256JVEIQ works well. It operates between -40°C and 85°C without issues.

2. High Durability:
   Cars deal with bumps and shakes all the time. The W25Q256JVEIQ is tough and handles these stresses easily. It keeps working even in rough driving conditions.

3. Fast Data Access:
   Car systems need to work quickly. For example, maps must load fast, and safety features like collision alerts need real-time data. The W25Q256JVEIQ’s fast SPI interface makes this possible.

4. Low Power Use:
   Saving energy is important, especially for electric cars. The W25Q256JVEIQ uses very little power, helping the car’s battery last longer.

Tip: Always pick parts that handle tough conditions and work reliably for car systems.

Real-Life Example

Think about a car’s driver-assistance system (ADAS). It uses cameras and sensors to watch the road. The W25Q256JVEIQ stores and processes this data quickly and safely. Its toughness ensures it works on bumpy roads or in bad weather.

With these strong features, the W25Q256JVEIQ improves car systems. It’s a reliable choice for engineers building advanced car technology.

The W25Q256JVEIQ has all you need for embedded systems. It provides big storage, fast speeds, and saves energy. This helps your projects work well without problems. It is strong and works with many devices, like IoT gadgets and car systems.

Why pick the W25Q256JVEIQ?

• It works great even in tough conditions.

• Its smart features make it easy to use in designs.

Choose the W25Q256JVEIQ for the best results in your next project.

FAQ

What makes the W25Q256JVEIQ special compared to other SPI flash chips?

The W25Q256JVEIQ is faster, uses less power, and lasts longer. It supports Quad SPI for quick data transfers. It also works well in extreme temperatures, making it great for tough environments.

Can the W25Q256JVEIQ handle lots of data changes?

Yes, it can! The chip allows up to 100,000 program-erase cycles per sector. This makes it perfect for devices like IoT gadgets or factory systems that need frequent updates.

Is the W25Q256JVEIQ good for battery-powered gadgets?

Definitely! It runs on low voltage (2.7V to 3.6V) and uses only 1µA in power-down mode. This helps save energy, making it ideal for portable devices.

How does the W25Q256JVEIQ keep data safe?

The chip has strong security features like write-protect options, a unique ID, and security registers. These features protect your data from being accessed without permission.

Can I use the W25Q256JVEIQ in cars?

Yes, you can! It works in temperatures from -40°C to 85°C and handles physical stress well. This makes it great for car systems like navigation, safety, and entertainment.

Tip: Always check if the W25Q256JVEIQ fits your project’s needs before using it.
